Features:

•Common features:
0.5 MICRON CMOS Technology
High-speed, low-power CMOS replacement for ABT functions
Typical tSK(o)  (Output Skew) < 250ps
Low input and output leakage 1µA (max.)
ESD > 2000V per MIL-STD-883, Method 3015;> 200V using machine model (C = 200pF, R = 0)
Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack
Extended commercial range of -40°C to +85°C
VCC= 5V ±10%


Pinout

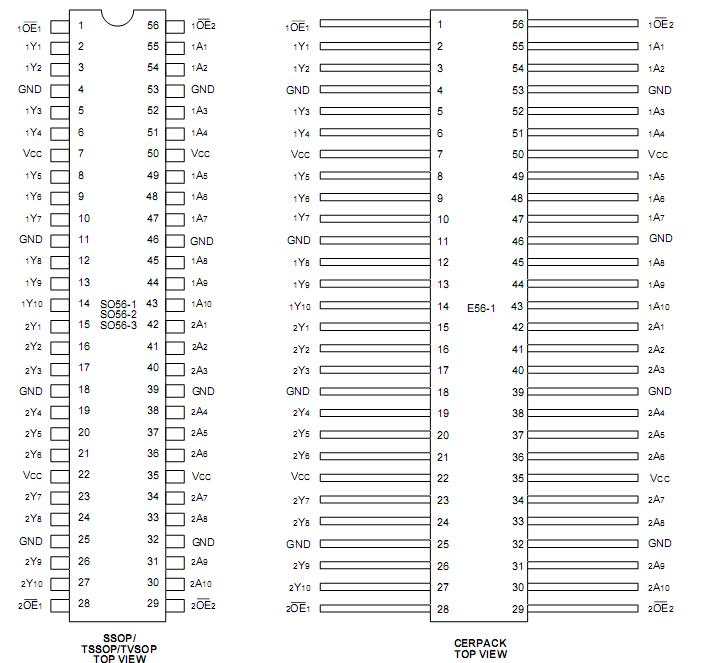

Connection Diagram


Specifications

Symbol Description Max. Unit
VTERM(2) Terminal Voltage with Respect to GND 0.5 to +7.0 V
VTERM(3) Terminal Voltage with Respect to GND 0.5 to VCC+0.5 V
TSTG Storage Temperature 65 to +150 °C
IOUT DC Output Current 60 to +120 mA



Description

The IDT74FCT16827ET 20-bit buffers are built using advanced dual metal CMOS technology.  These 20-bit bus drivers provide high-perfor-mance bus interface buffering for wide data/address paths or busses carrying parity. Two pair of NAND-ed output enable controls offer maximum control flexibility and are organized to operate the device as two 10-bit buffers or one 20-bit buffer.Flow-through organization of signal pins simplifies layout.  All inputs are designed with hysteresis for improved noise mar-gin.

The IDT74FCT16827ET are ideally suited for driving high capacitance loads and low impedance backplanes. The output buffers are designed with power off disable capability to allow "live insertion" of boards when used as backplane drivers.

The IDT74FCT16827ET have balanced output drive with current limiting resistors.  This offers low ground bounce, minimal undershoot, and controlled output fall timesreducing the need for external series terminating resistors.  The FCT162827AT/BT/CT/ET are plug-in replacements for the FCT16827AT/BT/CT/ET and ABT16827 for on-board inter-face applications.
