Features: • 0.5 MICRON CMOS Technology• High-speed, low-power CMOS replacement for ABT functions• Typical tSK(o) (Output Skew) < 250ps• Low input and output leakage 1A (max.)• VCC = 5V ± 10%• High drive outputs (-32mA IOH, 64mA IOL)• Power off disable o...
IDT74FCT16823AT: Features: • 0.5 MICRON CMOS Technology• High-speed, low-power CMOS replacement for ABT functions• Typical tSK(o) (Output Skew) < 250ps• Low input and output leakage 1A (ma...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Description |
Max |
Unit |
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +7 |
V |
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to VCC+0.5 |
V |
TSTG |
Storage Temperature |
65 to +150 |
°C |
IOUT |
DC Output Current |
60 to +120 |
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. All device terminals except FCT162XXX Output and I/O terminals.
3. Output and I/O terminals for FCT162XXX.

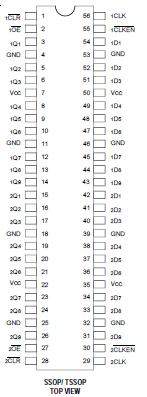

The IDT74FCT16823AT 18-bit bus interface registers are built using advanced, dual metal CMOS technology. These high-speed, low-power registers with clock enable (xCLKEN) and clear (xCLR) controls are ideal for parity bus interfacing in high-performance synchronous systems. The control inputs are organized to operate the device as two 9-bit registers or one 18-bit register. Flow-through organization of signal pins simplifies layout. All inputs are designed with hysteresis for improved noise margin.
The IDT74FCT16823AT is ideally suited for driving high-capacitance loads and low-impedance backplanes. The output buffers are designed with power off disable capability to allow "live insertion" of boards when used as backplane drivers.
