IDT74FCT163374

Features: 0.5 MICRON CMOS TechnologySK(o) (Output Skew) < 250ps Typical tESD > 2000V per MIL-STD-883, Method 3015;> 200V using machine model (C = 200pF, R = 0)Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP and 15.7 mil pitch TVSOPExtended commercial range of -40 to +85VCC = 3.3V...

product image

IDT74FCT163374 Picture
See larger image
SeekIC No. : 004372925 Detail

IDT74FCT163374: Features: 0.5 MICRON CMOS TechnologySK(o) (Output Skew) < 250ps Typical tESD > 2000V per MIL-STD-883, Method 3015;> 200V using machine model (C = 200pF, R = 0)Packages include 25 mil pitch ...

IDT74FCT163374 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT74FCT163374
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

0.5 MICRON CMOS Technology
SK(o) (Output Skew) < 250ps Typical t
ESD > 2000V per MIL-STD-883, Method 3015;> 200V using machine model (C = 200pF, R = 0)
Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP and 15.7 mil pitch TVSOP
Extended commercial range of -40 to +85
VCC = 3.3V ?0.3V, Normal Range or VCC = 2.7 to 3.6V, Extended Range
CMOS power levels (0.4W typ. static)
Rail-to-Rail output swing for increased noise margin
Low Ground Bounce (0.3V typ.)
Inputs (except I/O) can be driven by 3.3V or 5V components


Pinout

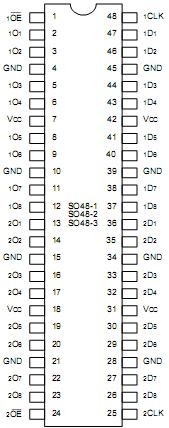

Connection Diagram

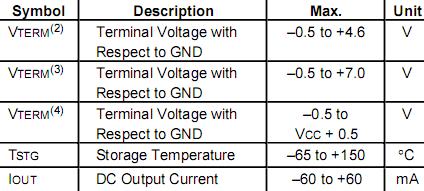

Specifications

Connection Diagram


Description

      The IDT74FCT163374 16-bit edge-triggered D-type registers are built using advanced dual metal CMOS technology.These high-speed, low-power registers are ideal for use as buffer registers for data synchronization and storage.  The Output Enable (xOE) and clock (xCLK) controls are organized to operate each device as two 8-bit registers or one 16-bit register with common clock.  Flow-through organization of signal pins facilitates ease of layout.   All inputs are designed with hysteresis for improved noise margin.

      The inputs of IDT74FCT163374 can be driven from either 3.3V or 5V devices.  This feature allows the use of these devices as translators in a mixed 3.3V/5V supply system.
