IDT74FCT163244/A/C

Features: 0.5 MICRON CMOS TechnologySK(o) (Output Skew) < 250psESD > 2000V per MIL-STD-883, Method 3015;> 200V using machine model (C = 200pF, R = 0)Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP and 15.7 mil pitch TVSOPExtended commercial range of -40 to +85VCC = 3.3V ±0.3V, No...

product image

IDT74FCT163244/A/C Picture
See larger image
SeekIC No. : 004372912 Detail

IDT74FCT163244/A/C: Features: 0.5 MICRON CMOS TechnologySK(o) (Output Skew) < 250psESD > 2000V per MIL-STD-883, Method 3015;> 200V using machine model (C = 200pF, R = 0)Packages include 25 mil pitch SSOP, 19.6...

IDT74FCT163244/A/C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT74FCT163244/A/C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

0.5 MICRON CMOS Technology
SK(o) (Output Skew) < 250ps
ESD > 2000V per MIL-STD-883, Method 3015;> 200V using machine model (C = 200pF, R = 0)
Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP and 15.7 mil pitch TVSOP
Extended commercial range of -40 to +85
VCC = 3.3V ±0.3V, Normal Range or  VCC = 2.7 to 3.6V, Extended Range
CMOS power levels (0.4W typ. static)
Rail-to-Rail output swing for increased noise margin
Low Ground Bounce (0.3V typ.)
Inputs (except I/O) can be driven by 3.3V or 5V components


Pinout

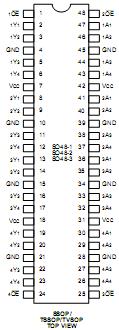

Connection Diagram


Specifications

Symbol Description Max. Unit
VTERM(2) Terminal Voltage with
Respect to GND		 0.5 to +4.6 V
VTERM(3) Terminal Voltage with
Respect to GND		 0.5 to +7.0 V
VTERM(4) Terminal Voltage with
Respect to GND		 0.5 to VCC + 0.5 V
TSTG Storage Temperature 65 to +150 °C
IOUT DC Output Current 60 to +60 mA



Description

      The IDT74FCT163244/A/C 16-bit buffer/line drivers are built using advanced dual metal CMOS technology.  These highspeed, low-power devices offer bus/backplane interface capability with improved packing density.  These devices have a flow-through organization for simplifying board layout.  The three-state controls operate these devices in a Quad-Nibble, Dual-Byte or single 16-bit word mode.  All inputs are designed with hysteresis for improved noise margin.
      The inputs of the IDT74FCT163244/A/C can be driven from either 3.3V or 5V devices.  This feature allows the use of these devices as translators in a mixed 3.3V/5V supply system. Thus, the IDT74FCT163244/A/C can be used as buffers to connect 5V components to a 3.3V bus.
