Product Details

Description



Features:

* 0.5 MICRON CMOS Technology
* Typical tSK(o) (Output Skew) < 250ps
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
* Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP and 15.7 mil pitch TVSOP
* Extended commercial range of -40°C to +85°C
*VCC = 3.3V ±0.3V, Normal Range or VCC = 2.7 to 3.6V, Extended Range
* CMOS power levels (0.4W typ. static)
* Rail-to-Rail output swing for increased noise margin
* Low Ground Bounce (0.3V typ.)
* Inputs (except I/O) can be driven by 3.3V or 5V components

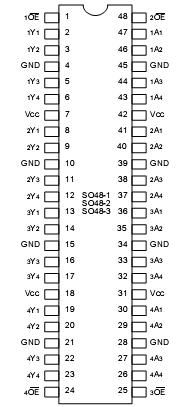

Pinout

Connection Diagram

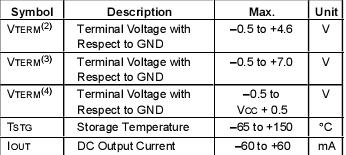

Specifications

Connection Diagram


Description

The IDT74FCT163244 16-bit buffer/line drivers are built using advanced dual metal CMOS technology. These highspeed, low-power devices offer bus/backplane interface capability with improved packing density. These devices have a flow-through organization for simplifying board layout. The three-state controls operate these devices in a Quad-Nibble, Dual-Byte or single 16-bit word mode. All inputs are designed with hysteresis for improved noise margin.

The inputs of the IDT74FCT163244 can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in a mixed 3.3V/5V supply system. Thus, the IDT74FCT163244 can be used as buffers to connect 5V components to a 3.3V bus.
