Features: • 0.5 MICRON CMOS Technology• High-speed, low-power CMOS replacement for ABT functions• Typical tSK(o) (Output Skew) < 250ps• Low input and output leakage 1A (max.)• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R ...
IDT74FCT162646AT: Features: • 0.5 MICRON CMOS Technology• High-speed, low-power CMOS replacement for ABT functions• Typical tSK(o) (Output Skew) < 250ps• Low input and output leakage 1A (ma...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Description |
Max |
Unit |
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +7 |
V |
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to VCC+0.5 |
V |
TSTG |
Storage Temperature |
65 to +150 |
°C |
IOUT |
DC Output Current |
60 to +120 |
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. All device terminals except FCT162XXX Output and I/O terminals.
3. Output and I/O terminals for FCT162XXX.

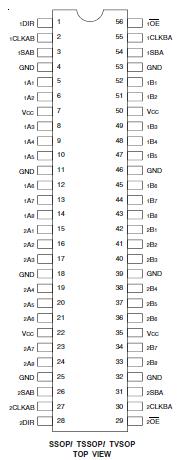

The IDT74FCT162646AT 16-bit registered transceivers are built using advanced dual metal CMOS technology. These high-speed, low-power devices are organized as two independent 8-bit bus transceivers with 3-state D-type registers. The control circuitry is organized for multiplexed transmission of data between A bus and B bus either directly or from the internal storage registers. Each 8-bit transceiver/register features direction control (xDIR), over-riding Output Enable control (xOE) and Select lines (xSAB and xSBA) to select either real-time data or stored data. Separate clock inputs are provided for A and B port registers. Data on the A or B data bus, or both, can be stored in the internal registers by the low-to-high transitions at the appropriate clock pins. Flowthrough organization of signal pins simplifies layout. All inputs are designed with hysteresis for improved noise margin.
The IDT74FCT162646AT has balanced output drive with current limiting resistors. This offers low ground bounce, minimal undershoot, and controlled output fall times-reducing the need for external series terminating resistors. The FCT162646T is a plug-in replacement for the FCT16646T and ABT16646 for on-board bus interface applications.
