IDT74FCT162240AT

Features: • 0.5 MICRON CMOS Technology• High-speed, low-power CMOS replacement for ABT functions• Typical tSK(o) (Output Skew) < 250ps• Low input and output leakage 1A (max.)• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R ...

product image

IDT74FCT162240AT Picture
See larger image
SeekIC No. : 004372850 Detail

IDT74FCT162240AT: Features: • 0.5 MICRON CMOS Technology• High-speed, low-power CMOS replacement for ABT functions• Typical tSK(o) (Output Skew) < 250ps• Low input and output leakage 1A (ma...

IDT74FCT162240AT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT74FCT162240AT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 0.5 MICRON CMOS Technology
• High-speed, low-power CMOS replacement for ABT functions
• Typical tSK(o) (Output Skew) < 250ps
• Low input and output leakage 1A (max.)
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 5V ±10%
• Balanced Output Drivers: ±24mA
• Reduced system switching noise
• Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V, TA = 25°C
• Available in SSOP and TSSOP packages


Application

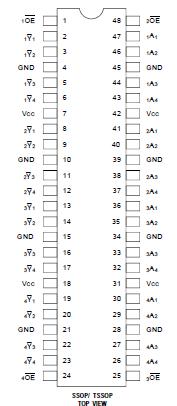

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Terminal Voltage with Respect to GND
0.5 to +7
V
VTERM(3)
Terminal Voltage with Respect to GND
0.5 to VCC+0.5
V
TSTG
Storage Temperature
65 to +150
°C

IOUT
DC Output Current
60 to +120
mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. All device terminals except FCT162XXX Output and I/O terminals.
3. Output and I/O terminals terminals for FCT162XXX.




Description

The FCT162240T 16-bit buffer/line driver is built using advanced dual metal CMOS technology. These high-speed, low-power devices offer bus/backplane interface capability with improved packing density. The flow-through organization of IDT74FCT162240AT of signal pins simplifies layout. The three-state controls are designed to operate these devices in a Quad-Nibble, Dual-Byte or single 16-bit word mode. All inputs of IDT74FCT162240AT are designed with hysteresis for improved noise margin.

The FCT162240T have balanced output drive with current limiting resistors. This offers low ground bounce of IDT74FCT162240AT, minimal undershoot, and controlled output fall timesreducing the need for external series terminating resistors. The FCT162240T is a plug-in replacement for FCT16240T and 74ABT16240 for on-board interface applications.
