IDT74FCT157DT

Features: • A, C, and D grades• Low input and output leakage 1A (max.)• CMOS power levels• True TTL input and output compatibility: VOH = 3.3V (typ.) VOL = 0.3V (typ.)• High Drive outputs (-15mA IOH, 48mA IOL)• Meets or exceeds JEDEC standard 18 specifications...

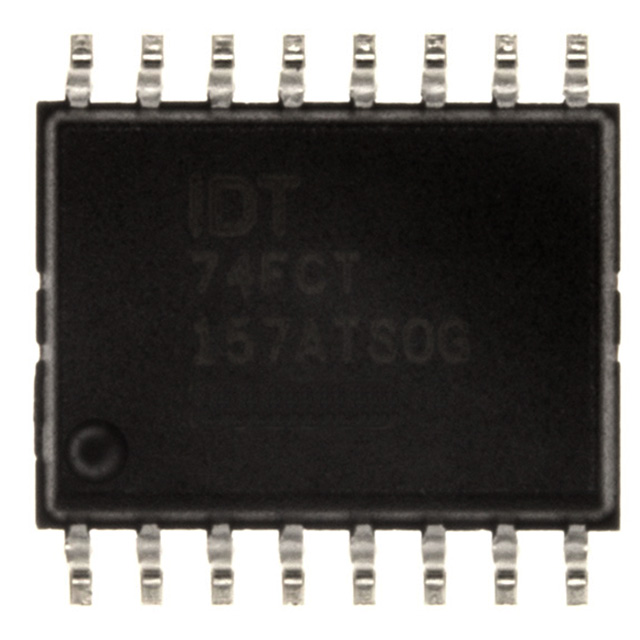

product image

IDT74FCT157DT Picture
SeekIC No. : 004372846 Detail

IDT74FCT157DT: Features: • A, C, and D grades• Low input and output leakage 1A (max.)• CMOS power levels• True TTL input and output compatibility: VOH = 3.3V (typ.) VOL = 0.3V (typ.)̶...

floor Price/Ceiling Price

Part Number:
IDT74FCT157DT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• A, C, and D grades
• Low input and output leakage 1A (max.)
• CMOS power levels
• True TTL input and output compatibility: VOH = 3.3V (typ.) VOL = 0.3V (typ.)
• High Drive outputs (-15mA IOH, 48mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Power off disable outputs permit "live insertion"
• Available in SOIC and QSOP packages



Pinout

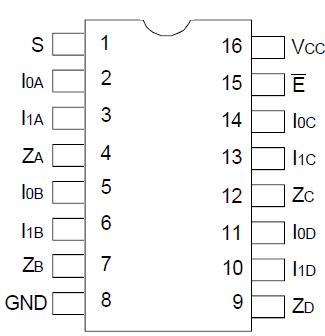

  Connection Diagram


Specifications

Symbol

Description
Max
Unit
VTERM(2)
Terminal Voltage with Respect to GND
0.5 to +7
V
VTERM(3)
Terminal Voltage with Respect to GND
0.5 to VCC+0.5
V
TSTG
Storage Temperature
65 to +150
°C

IOUT

DC Output Current
60 to +120
mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. No terminal voltage may exceed Vcc by +0.5V unless otherwise noted.
2. Inputs and Vcc terminals only.
3. Output and I/O terminals only.




Description

The FCT157T is a high-speed quad 2-input multiplexer built using an advanced dual metal CMOS technology. Four bits of data from two sources can be selected using the common select input. The four buffered outputs present the selected data in the true (non-inverting) form.

The FCT157T has a common, active-low, enable input. When the enable input is not active, all four outputs are held low. A common application of FCT157T is to move data from two different groups of registers to a common bus. Another application is as a function generator. The FCT157T can generate any four of the 16 different functions of two variables with one variable common.
