IDT74CBTLV3253

Features:

-  Functionally equivalent to QS3253
-  5W Switch Connection between Two Ports
-  Isolation Under Power-Off Conditions
-  Over-voltage tolerant
-  Latch-up performance exceeds 100ma
-  VCC = 2.3V - 3.6V, normal range
-  ESD > 2000V per MIL-STD-883, Method 3015;
  > 200V using machine model (C = 200pF, R = 0)
-  Available in SSOP, QSOP, and TSSOP packages

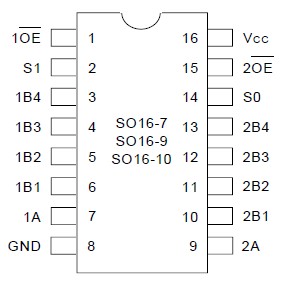

Pinout




Specifications

Symbol	Description	Max.	Unit
VCC	SupplyVoltage Range	0.5 to +4.6	V
VI	Input Voltage Range	0.5 to +4.6	V
	Continuous Channel Current	128	mA
IIK	Input Clamp Current, VI/O < 0	-50	mA
TSTG	Storage Temperature	65 to +150	° C

NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The CBTLV3253 is a dual 1-of-4 high-speed multiplexer/demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The select (S0, S1) input controls the data flow. The multiplexer/demultiplexer switches IDT74CBTLV3253 are disabled when the output-enable (OE) input is high.

To ensure that the device is in high-impedance state during power up or power down, OE IDT74CBTLV3253 should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
