IDT74CBTLV3126

Features:

-  Pin-Out Compatible with Standard '126 Logic Products
-  5 A/B bi-directional switch
-  Isolation Under Power-Off Conditions
-  Over-voltage tolerant
-  Latch-up performance exceeds 100mA
-  V_CC = 2.3V - 3.6V, normal range
-  ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
-  Output Enable, Active High
-  Available in TSSOP and QSOP packages


Application

-  3.3V High Speed Bus Switching and Bus Isolation

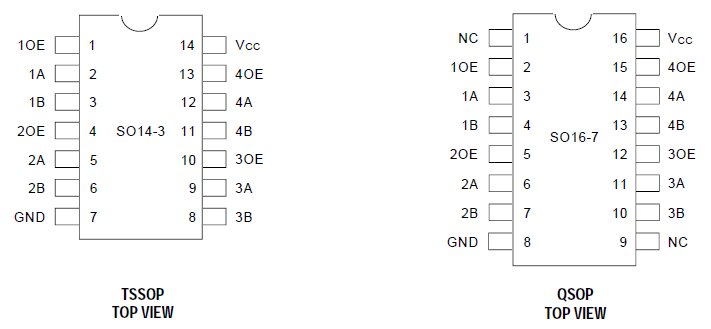

Pinout




Specifications

Symbol	Description	Max.	Unit
VCC	Supply Voltage Range	0.5 to 4.6	V
VI	Input Voltage Range	0.5 to 4.6	V
	Continuous Channel Current	128	mA
IIK	Input Clamp Current, VI/O < 0	50	mA
TSTG	Storage Temperature	65 to +150	°C

NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The CBTLV3126 features four independent switches. Each switch is enabled when the associated output-enable (OE) IDT74CBTLV3126 input is high.
To ensure the high-impedance state during power up or power down, OE IDT74CBTLV3126 should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
