IDT74CBTLV3125

Features:

Pin-Out Compatible with Standard '125 Logic Products
5 A/B bi-directional switch
Isolation Under Power-Off Conditions
Over-voltage tolerant
Latch-up performance exceeds 100mA
V_CC = 2.3V - 3.6V, normal range
ESD > 2000V per MIL-STD-883, Method 3015;
  > 200V using machine model (C = 200pF, R = 0)
Output Enable, Active Low
Available in TSSOP and QSOP packages

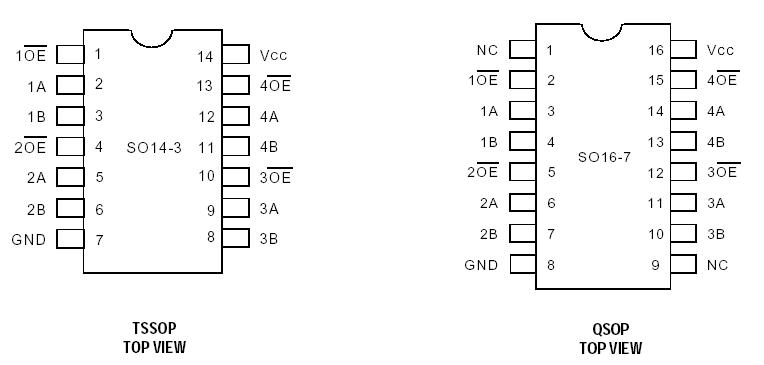

Pinout




Specifications

Symbol	Description	Max.	Unit
VCC	Supply Voltage Range	0.5 to 4.6	V
VI	Input Voltage Range	0.5 to 4.6	V
	Continuous Channel Current	128	mA
IIK	Input Clamp Current, , VI/O < 0	-50	mA
TSTG	Storage Temperature	65 to +150

NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The IDT74CBTLV3125 features four independent switches. Each switch is enabled when the associated output-enable (OE ) input is low.

To ensure the high-impedance state during power up or power down, OE of the IDT74CBTLV3125 should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
