IDT74CBTLV16292

Features:

• 5 A/B bi-directional switch
• Isolation Under Power-Off Conditions
• Make-before-break feature
• Over-voltage tolerant
• Internal 500 pull-down resistor to GND
• Latch-up performance exceeds 100mA
• V_CC = 2.3V - 3.6V, normal range
• ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0)
• Available in SSOP, TSSOP, and TVSOP packages


Application

• 3.3V High Speed Bus Switching and Bus Isolation
• Resource sharing

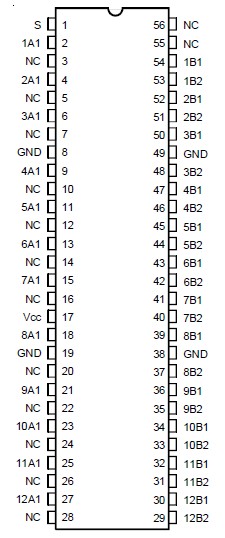

Pinout




Specifications

Symbol	Description	Max.	Unit
VCC	SupplyVoltage Range	0.5 to +4.6	V
VI	Input Voltage Range	0.5 to +4.6	V
	Continuous Channel Current	128	mA
IIK	Input Clamp Current, VI/O < 0	-50	mA
TSTG	Storage TemperatureRange	65 to +150	° C

NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The CBTLV16292 is a single 12-bit multiplexing / demultiplexing bus switch, which provides high speed switching. IDT74CBTLV16292 has very low ON resistance, resulting in under 250ps propagation delay throught the switch. The demultiplexer side has a 500 resistor (R pulldown) termination to GND to eliminate floating nodes.

When the select (S) input is low, the A port is connected to the B1 port, and the R pulldown is connected to the B2 port. Similarly, when the S input is high, A port of IDT74CBTLV16292 is connected to B2 port and the R pulldown is connected to B1 port
