Features: • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)• 1.8V Optimized• 0.8V to 2.7V Operating Range• Inputs/outputs tolerant up to 3.6V• Output drivers: ±4.5mA @ VDD = 2.3V• Low switching noise• Supports ...

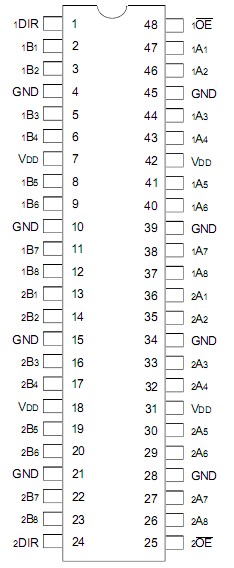

IDT74AUCR16245: Features: • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)• 1.8V Optimized• 0.8V to 2.7V Operating Range• Inputs/outputs tolera...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Description |
Max |
Unit | |
VTERM | Terminal Voltage with Respect to GND (all input and VDD terminals) |
0.5 to +3.6 |
V | |
VTERM | Terminal Voltage with Respect to GND (any I/O or Output terminals in high- impedance or power-off state) |
0.5 to +3.6 |
V | |
VTERM | Terminal Voltage with Respect to GND (any I/O or Output terminals in high or low state) |
0.5 to +3.6 |
V | |
TSTG | Storage Temperature |
65 to +150 |
°C | |
IOUT | Continuous DC Output Current |
±20 |
mA | |
IIK | Continuous Clamp Current | VI > VDD |
+50 |
mA |
VI < 0 |
50 | |||
IOK | Continuous Clamp Current, VO < 0 |
50 |
mA | |
IDD | Continuous Current through |
±100 |
mA | |
ISS | each VDD or GND |
This 16-bit bus transceiver is built using advanced CMOS technology. The AUCR16245 is designed specifically for asynchronous communications be-tween data buses. The control function implementation minimizes external timing requirements.
IDT74AUCR16245 can be used as one 16-bit transceiver or two 8-bit transceivers. It allows data transmission from A bus to B bus or from B bus to A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
IDT74AUCR16245 is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflowthrough the device when it is powered down.
The AUCR16245 has series resistors in the device output structure which will reduce line noise when used with light loads. This driver has been designedwith a ±4.5mA output driver at the designated threshold levels.
To ensure the high-impedance state during power up or power down, OE IDT74AUCR16245 should be tied to VDD through a pull-up resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
