Features: • 0.5 MICRON CMOS Technology• Typical tSK(o) (Output Skew) < 250ps• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)• VCC = 3.3V ± 0.3V, Normal Range• VCC = 2.7V to 3.6V, Extended Range• VCC = 2.5V ± 0.2V...
IDT74ALVCH162374: Features: • 0.5 MICRON CMOS Technology• Typical tSK(o) (Output Skew) < 250ps• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)•...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Description |
Max |
Unit |
VTERM(2) | Terminal Voltage with Respect to GND |
-0.5 to +4.6 |
V |
VTERM(3) | Terminal Voltage with Respect to GND |
0.5 to VCC+0.5 |
V |
TSTG | Storage Temperature |
65 to +150 |
|
IOUT | DC Output Current |
50 to +50 |
mA |
IIK | Continuous Clamp Current, VI < 0 or VI > VCC |
±50 |
mA |
IOK | Continuous Clamp Current, VO < 0 |
-50 |
mA |
ICC ISS |
Continuous Current through each VCC or GND |
±100 |
mA |

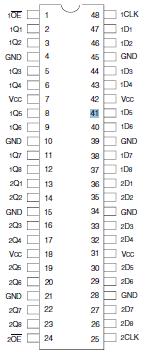

This 16-bit edge-triggered D-type flip-flop of the IDT74ALVCH162374 is built using advanced dual metal CMOS technology. The ALVCH162374 is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. It can be used as two 8-bit flip-flops or one 16-bit flip-flop. On the positive transition of the clock (CLK) input, the Q outputs of the flip-flop take on the logic levels set up logic state (high or low logic levels) or a high-impedance state. In the highimpedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines without need for interface or pullup components. OE does not affect internal operations of the flip-flop. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.
The IDT74ALVCH162374 has series resistors in the device output structure which will significantly reduce line noise when used with light loads. This driver has been designed to drive ±12mA at the designated threshold levels.
The IDT74ALVCH162374 has "bus-hold" which retains the inputs' last state whenever the input goes to a high impedance. This prevents floating inputs and eliminates the need for pull-up/down resistor.
