IDT74ALVC16836

Features: • 0.5 MICRON CMOS Technology• Typical tSK(o) (Output Skew) < 250ps• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)• VCC = 3.3V ± 0.3V, Normal Range• VCC = 2.7V to 3.6V, Extended Range• VCC = 2.5V ± 0.2V...

product image

IDT74ALVC16836 Picture
See larger image
SeekIC No. : 004372737 Detail

IDT74ALVC16836: Features: • 0.5 MICRON CMOS Technology• Typical tSK(o) (Output Skew) < 250ps• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)•...

IDT74ALVC16836 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT74ALVC16836
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 0.5 MICRON CMOS Technology
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in SSOP, TSSOP, and TVSOP packages


Application

• SDRAM Modules
• PC Motherboards
• Workstations


Pinout

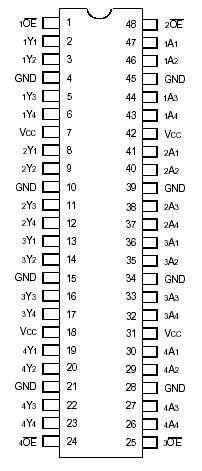

Connection Diagram


Specifications

Symbol
Rating
Max
Unit
VTERM
(VDD)
VDD Terminal Voltage
with Respect to GND
0.5 to +4.6
V
VTERM(2)
VDDQ Terminal Voltage
with Respect to GND
0.5 to VCC+0.5
V
VTERM(2)
(INPUTS and I/O's)
Input and I/O Terminal
Voltage with Respect to GND
65 to +150
°C
IOUT
 DC Output Current
50 to +50
°C
TSTG
Continuous Clamp Current,
VI < 0 or VI > VCC
-65 to +150
mA
TJN
Junction Temperature
+ 150
mA
IOK
Continuous Clamp Current, VO < 0
-50
mA
ICC
ISS
Continuous Current through
VCC or GND
±100
mA


NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC.




Description

This 20-bit universal bus driver of the IDT74ALVC16836 is built using advanced dual metal CMOS technology. Data flow from A to Y is controlled by the output-enable (OE) input. The device operates in the transparent mode when the latch-enable (LE) input is low.

The A data of the IDT74ALVC16836 is latched if the clock (CLK) input is held at a high or low logic level. If LE is high, the A data is stored in the latch flip-flop on the low-to-high transition of CLK. When OE is high, the outputs are in the high-impedance state. The ALVC16836 has been designed with a ±24mA output driver. This driver is capable of driving a moderate to heavy load while maintaining speed performance.
