IDT74ALVC164245

Features: • 0.5 MICRON CMOS Technology• Typical tSK(o) (Output Skew) < 250ps• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)• VCCA = 2.7V to 3.6V• VCCB = 5V ± 0.5V• CMOS power levels (0.4µ W typ. static)...

product image

IDT74ALVC164245 Picture
SeekIC No. : 004372733 Detail

IDT74ALVC164245: Features: • 0.5 MICRON CMOS Technology• Typical tSK(o) (Output Skew) < 250ps• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)•...

floor Price/Ceiling Price

Part Number:
IDT74ALVC164245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 0.5 MICRON CMOS Technology
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCCA = 2.7V to 3.6V
• VCCB = 5V ± 0.5V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in SSOP, TSSOP, and TVSOP packages



Application

• Mixed 3.3V and 5V High Speed Systems
• 5V PCI Interface to 3.3V PC Bus Structures
• Telecommunication Legacy Systems with transitions from 5V to 3.3V



Pinout

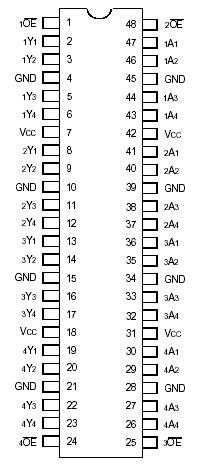

  Connection Diagram


Specifications

Symbol
Rating
Max
Unit
VTERM
(VDD)
VDD Terminal Voltage
with Respect to GND
0.5 to +4.6
V
VTERM(2)
VDDQ Terminal Voltage
with Respect to GND
0.5 to VCC+0.5
V
VTERM(2)
(INPUTS and I/O's)
Input and I/O Terminal
Voltage with Respect to GND
65 to +150
°C
IOUT
DC Output Current
50 to +50
°C
TSTG
Continuous Clamp Current,
VI < 0 or VI > VCC
-65 to +150
mA
TJN
Junction Temperature
+ 150
mA
IOK
Continuous Clamp Current, VO < 0
-50
mA
ICC
ISS
Continuous Current through
VCC or GND
±100
mA


NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC.




Description

This 16-bit 3.3V to 5V level shifting transceiver of the IDT74ALVC164245 is manufactured using advanced dual metal CMOS technology. The ALVC164245 contains two separate supply rails; B port has VCCB, which is set at 5V, and A port has VCCA, which is set to operate at 3.3V. This allows for translation from a 3.3V to 5V environment and vice-versa. This device is designed for asynchronous communication between data buses.

The IDT74ALVC164245 has been designed with a ±24mA output driver. This driver is capable of driving a moderate to heavy load while maintaining speed performance.
