IDT73720

Features: High-speed 16-bit bus exchange for interbus communication in thefollowing environments:• Multi-way interleaving memory• Multiplexed address and data buses Direct interface to R3051 family RISChipSet™• R3051™ family of integrated RISController™ CPUs...

product image

IDT73720 Picture
See larger image
SeekIC No. : 004372704 Detail

IDT73720: Features: High-speed 16-bit bus exchange for interbus communication in thefollowing environments:• Multi-way interleaving memory• Multiplexed address and data buses Direct interface to ...

IDT73720 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT73720
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High-speed 16-bit bus exchange for interbus communication in the
following environments:
• Multi-way interleaving memory
• Multiplexed address and data buses
Direct interface to R3051 family RISChipSet™
• R3051™ family of integrated RISController™ CPUs
• R3721 DRAM controller
Data path for read and write operations
Low noise 12mA TTL level outputs
Bidirectional 3-bus architecture: X, Y, Z
• One CPU bus: X
• Two (interleaved or banked) memory buses:Y & Z
• Each bus can be independently latched
Byte control on all three buses
Source terminated outputs for low noise and undershoot control
68-pin PLCC and 80-pin PQFP package
High-performance CMOS technology.


Pinout

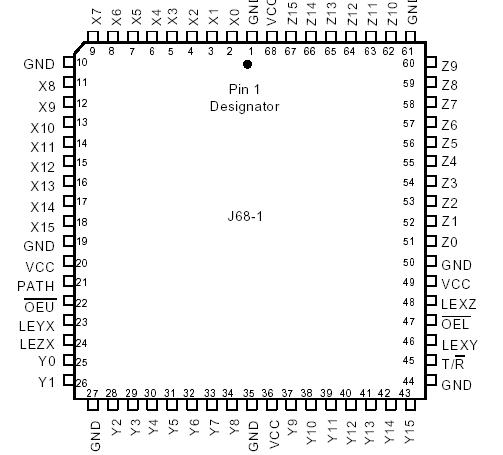

Connection Diagram


Specifications

Symbol
Description
Max
Unit
PT
Power Dissipation
1
V
VTERM
Terminal Voltage with Respect to GND
VCC + 0.5
V
VTER(2)
Operating Temperature
0.5 to +7
° C
TBIAS
Temperature Under Bias
55 to +125
° C
TSTG
Storage Temperature
55 to +125
°C
IOUT
DC Output Current
50
mA

NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.






Description

The IDT73720/A Bus Exchanger is a high speed 16-bit bus exchange device intended for inter-bus communication in interleaved memory systems and high performance multiplexed address and data buses.

The Bus Exchanger is responsible for interfacing between the CPU A/ D bus (CPU address/data bus) and multiple memory data buses.

The IDT73720 uses a three bus architecture (X, Y, Z), with control signals suitable for simple transfer between the CPU bus (X) and either memory bus Y or Z). The Bus Exchanger features independent read and write latches for each memory bus, thus supporting a variety of memory strategies. All three ports support byte enable to independently enable upper and lower bytes.
