IDT72V70800

Features: • 512 x 512 channel non-blocking switching at 8.192 Mb/s• Per-channel variable or constant throughput delay• Automatic identification of ST-BUS®/GCI interfaces• Accepts 4 Serial Data Streams of 8.192 Mb/s• Automatic frame offset delay measurement• ...

product image

IDT72V70800 Picture
See larger image
SeekIC No. : 004372668 Detail

IDT72V70800: Features: • 512 x 512 channel non-blocking switching at 8.192 Mb/s• Per-channel variable or constant throughput delay• Automatic identification of ST-BUS®/GCI interfaces•...

IDT72V70800 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT72V70800
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 512 x 512 channel non-blocking switching at 8.192 Mb/s
• Per-channel variable or constant throughput delay
• Automatic identification of ST-BUS®/GCI interfaces
• Accepts 4 Serial Data Streams of 8.192 Mb/s
• Automatic frame offset delay measurement
• Per-stream frame delay offset programming
• Per-channel high impedance output control
• Per-channel Processor Mode
• Control interface compatible to Intel/Motorola CPUs
• Connection memory block programming
•·Available in 64-pin Thin Plastic Quad Flatpack (TQFP) and
   64-pin Small Thin Quad Flatpack (STQFP)
• 3.3V Power Supply
• Operating Temperature Range -40°C to +85°C
• 3.3V I/O with 5V Tolerant Inputs


Pinout

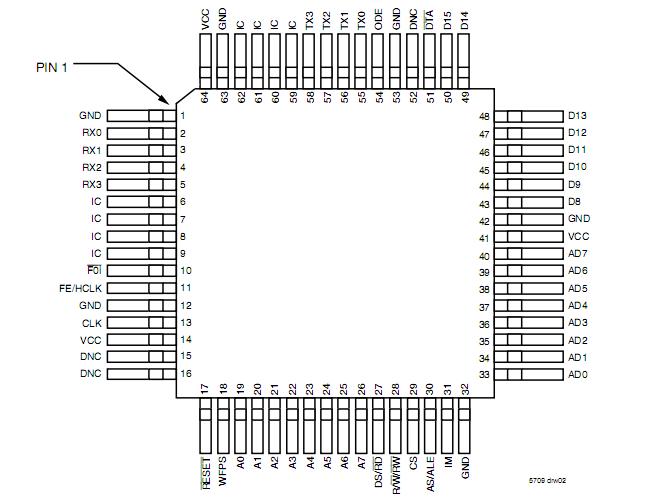

Connection Diagram


Specifications

Symbol
Parameter
Min.
Max.
Unit
VCC
 Supply Voltage
-0.3
5.0
V
Vi
Voltage on Digital Inputs GND
-0.3
5.5
V
IO
Current at Digital Outputs
20
mA
TS
 Storage Temperature
-65
+125
°C
PD
Package Power Dissapation
-
1
W

NOTE:
1. Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied.




Description

The IDT72V70800 is a non-blocking digital switch that has a capacity of 512 x 512 channels at a serial bit rate of 8.192 Mb/s. Some of the main features are: programmable stream and channel control, Processor Mode, input offset delay and high-impedance output control.

Per-stream input delay control of the IDT72V70800 is provided for managing large multi-chip switches that transport both voice channel and concatenated data channels. In addition, input streams can be individually calibrated for input frame offset.
