IDT72V3693

Features: •Memory storage capacity: IDT72V368316,384 x 36IDT72V369332,768 x 36IDT72V3610365,536 x 36•Clock frequencies up to 100 MHz (6.5 ns access time)•Clocked FIFO buffering data from Port A to Port B•IDT Standard timing (using EFand FF) or First Word Fall Through Timing...

product image

IDT72V3693 Picture
See larger image
SeekIC No. : 004372639 Detail

IDT72V3693: Features: •Memory storage capacity: IDT72V368316,384 x 36IDT72V369332,768 x 36IDT72V3610365,536 x 36•Clock frequencies up to 100 MHz (6.5 ns access time)•Clocked FIFO buffering dat...

IDT72V3693 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT72V3693
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Memory storage capacity:
  IDT72V368316,384 x 36
  IDT72V369332,768 x 36
  IDT72V3610365,536 x 36
•Clock frequencies up to 100 MHz (6.5 ns access time)
•Clocked FIFO buffering data from Port A to Port B
•IDT Standard timing (using EF and FF) or First Word Fall
  Through Timing (using OR and IR flag functions)
•Programmable Almost-Empty and Almost-Full flags; each has
  five default offsets (8, 16, 64, 256 and 1,024)
•Serial or parallel programming of partial flags
•Port B bus sizing of 36 bits (long word), 18 bits (word) and 9 bits
  (byte)


Pinout

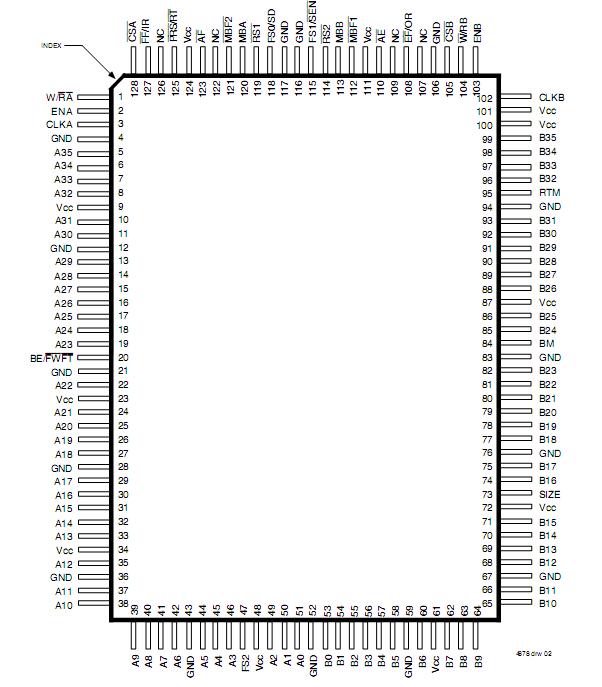

Connection Diagram


Specifications

Symbol Rating Commercial Unit
VCC Supply Voltage Range 0.5 to +4.6 V
VI(2) Input Voltage Range 0.5 to VCC+0.5 V
VO(2) Output Voltage Range 0.5 to VCC+0.5 V
IIK Input Clamp Current (VI< 0 or VI> VCC) ±20 mA
IOK Output Clamp Current (VO= < 0 or VO> VCC) ±50 mA
IOUT Continuous Output Current (VO= 0 to VCC) ±50 mA
ICC Continuous Current Through VCC or GND ±400 mA
TSTG Storage Temperature Range 65 to 150 °C



Description

The IDT72V3693 are designed to run off a 3.3V supply for exceptionally low power consumption.  These devices are monolithic, high-speed, low-power, CMOS unidirectional Synchronous (clocked) FIFO memory which supports clock frequencies up to 100 MHz and has read access times as fast as 6.5 ns.  The 16,384/32,768/65,536 x 36 dual-port SRAM FIFO buffersdata from Port A to Port B.  FIFO data on Port B can output in 36-bit, 18-bit, or 9-bit formats with a choice of Big- or Little-Endian configurations.

These devices of the IDT72V3693 are  synchronous (clocked) FIFOs, meaning each port employs a synchronous interface. All data transfers through a port are gated to the LOW-to-HIGH transition of a port clock by enable signals.  The clocks for each port are independent of one another and can be asynchronous or
