Product Details

Description



Features:

• 256 x 256 channel non-blocking switch
• Serial Telecom Bus Compatible (ST-BUS®)
• 8 RX inputs-32 channels at 64 Kbit/s per serial line
• 8 TX output-32 channels at 64 Kbit/s per serial line
• Three-state serial outputs
• Microprocessor Interface (8-bit data bus)
• 5V Power Supply
• Available in 44-pin Plastic Leaded Chip Carrier (PLCC), 40-pin
  Plastic Dip (P-DIP) and 44-pin Plastic Quad Flatpack (PQFP)
• Operating Temperature Range -40°C to +85°C


Pinout

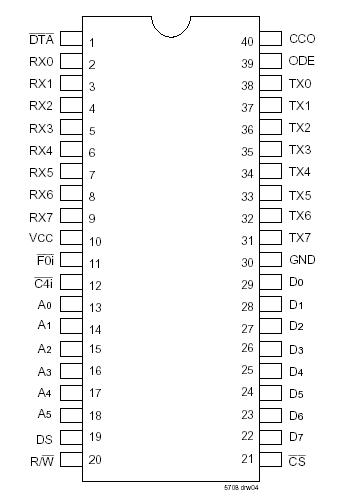

Connection Diagram


Description

The IDT728980 is a ST-BUS® compatible digital switch controlled by a microprocessor. The IDT728980 can handle as many as 256, 64 Kbit/s input and output channels. Those 256 channels are divided into 8 serial inputs and outputs, each of which consists of 32 channels (64 Kbit/s per channel) to form a multiplexed 2.048 Mb/s stream.
