Features:

• First-ln/First-Out Dual-Port memory-45MHz
• 64 x 5 organization
• Low-power consumption
   - Active: 200mW (typical)
• RAM-based internal structure allows for fast fall-through time
• Asynchronous and simultaneous read and write
• Expandable by bit width
• Cascadable by word depth
• Half-Full and Almost-Full/Empty status flags
• IDT72413 is pin and functionally compatible with the MMI67413
• High-speed data communications applications
• Bidirectional and rate buffer applications
• High-performance CMOS technology
• Available in plastic DIP, CERDIP and SOIC
• Military product compliant to MIL-STD-883, Class B
• Industrial temperature range (-40oC to +85oC) is available,tested to military electrical specifications


Pinout

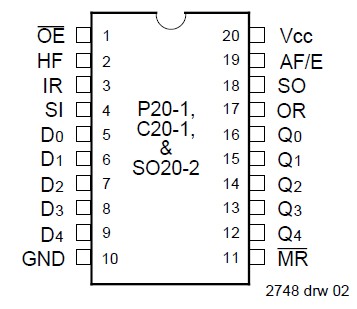

Connection Diagram


Specifications

Symbol Rating Commercial Military Unit
VTERM Terminal Voltage
with Respect
to GND		 -0.5 to +7.0 -0.5 to +7.0 V
TA Operating
Temperature		 0 to +70 -55 to +125
TBIAS Temperature
Under Bias		 -55 to +125 -65 to +135
TSTG Storage
Temperature		 -55 to +125 -65 to +150
IOUT DC Output
Current		 50 50 mA



Description

The IDT72413 is a 64 x 5, high-speed First-In/First-Out (FIFO) that loads and empties data on a first-in-first-out basis.It is expandable in bit width. All speed versions are cascadable in depth.

The FIFO has a Half-Full Flag, which signals when it has 32 or more words in memory. The Almost-Full/Empty Flag is active when there are 56 or more words in memory or when there are 8 or less words in memory.

The IDT72413 is pin and functionally compatible to the MMI67413. It operates at a shift rate of 45MHz. This makes it ideal for use in high-speed data buffering applications. The IDT72413 can be used as a rate buffer, between two digital systems of varying data rates, in high-speed tape drivers, hard disk controllers, data communications controllers and graphics controllers.

The IDT72413 is fabricated using IDTs high-performance CMOS process. This process maintains the speed and high output drive capability of TTL circuits in low-power CMOS.

Military grade product is manufactured in compliance with the latest revision of MIL-STD-883, Class B.
