IDT723612

Features: • Free-running CLKA and CLKB can be asynchronous or coincident (simultaneous reading and writing of data on a single clock edge is permitted)• Two independent clocked FIFOs (64 x 36 storage capacity each) buffering data in opposite directions• Mailbox bypass Register fo...

product image

IDT723612 Picture
SeekIC No. : 004372407 Detail

IDT723612: Features: • Free-running CLKA and CLKB can be asynchronous or coincident (simultaneous reading and writing of data on a single clock edge is permitted)• Two independent clocked FIFOs (64...

floor Price/Ceiling Price

Part Number:
IDT723612
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Free-running CLKA and CLKB can be asynchronous or coincident (simultaneous reading and writing of data on a
   single clock edge is permitted)
• Two independent clocked FIFOs (64 x 36 storage capacity each) buffering data in opposite directions
• Mailbox bypass Register for each FIFO
• Programmable Almost-Full and Almost-Empty Flags
• Microprocessor interface control logic
•EFA, FFA, AEA, and AFA flags synchronized by CLKA
• EFB, FFB, AEB, and AFB flags synchronized by CLKB
• Passive parity checking on each port
• Parity generation can be selected for each port
• Low-power advanced BiCMOS technology
• Supports clock frequencies up to 67 MHz
• Fast access times of 10ns
• Available in 132-pin plastic quad flat package (PQF) or space-saving 120-pin thin quad flat package (TQFP)
• Industrial temperature range (-40oC to +85oC) is available, tested to military electrical specifications



Pinout

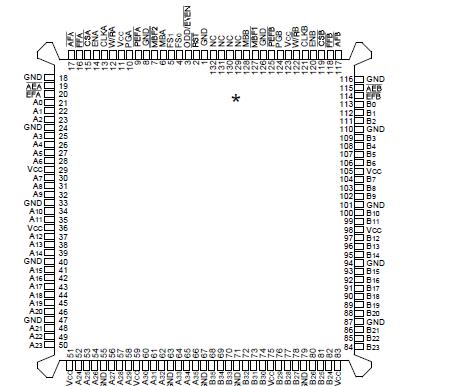

  Connection Diagram


Specifications

Symbol
Rating
Commercial
Unit
VCC
Supply Voltage Range
-0.5 to 7
V
VI(2)
Input Voltage Range
-0.5 to VCC+0.5
V
VO(2)
Output Voltage Range
-0.5 to VCC+0.5
V
IIK
Input Clamp Current, (VI < 0 or VI > VCC)
±20
mA
IOK
Output Clamp Current, (VO < 0 or VO > VCC)
±50
mA
IOUT
Continuous Output Current, (VO = 0 to VCC)
±50
mA
ICC
Continuous Current Through VCC or GND
±500
mA
TA
Operating Free Air Temperature Range
0 to 70
°C
TSTG
Storage Temperature Range
-65 to 150
°C
Notes:
1. Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage
to the device. These are stress ratings only and functional operation of the device at these or any
other conditions beyond those indicated under "Recommended Operating Conditions" is not implied.
Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The input and output  voltage  ratings  may be  exceeded  provided  the  input and output current
ratings are observed.



Description

The IDT723612 is a monolithic high-speed, low-power BiCMOS bi-directional clocked FIFO memory. It supports clock frequencies up to 67 MHz and has read access times as fast as 10ns. Two independent 64 x 36 dual-port SRAM FIFOs on board the chip buffer data in opposite directions. Each FIFO has flags to indicate empty and full conditions and two programmable flags (almost-full and almost-empty) to indicate when a selected number of words is stored in memory. Communication between each port can bypass the FIFOs via two 36-bit mailbox registers. Each mailbox register has a flag to signal when new mail has been stored. Parity is checked passively on each port and may be ignored if not desired. Parity generation can be selected for data read from each port. Two or more devices can be used in parallel to create wider data paths.

The IDT723612 is a clocked FIFO, which means each port employs a synchronous interface. All data transfers through
Note:
1. NC - No internal connection a port are gated to the LOW-to-HIGH transition of a port clock by enable signals. The clocks for each port are independent of one another and can be asynchronous or coincident. The enables for each port are arranged to provide a simple bidirectional interface between microprocessors and/or buses with synchronous control.

The full flag (FFA, FFB) and almost-full (AFA, AFB) flag of a FIFO are two-stage synchronized to the port clock that writesdata to its array. The empty flag (EFA, EFB) and almost-empty (AEA, AEB) flag of a FIFO are two stage synchronized to the port clock that reads data from its array. The IDT723612 is characterized for operation from 0°C to 70°C.
