Features:

• Free-running CLKA and CLKB may be asynchronous or oincident (permits simultaneous reading and writing of ata on a single clock edge)
• 64 x 36 storage capacity
• Synchronous data buffering from Port A to Port B
• Mailbox bypass register in each direction
• Programmable Almost-Full (AF) and Almost-Empty (AE)flags
• Microprocessor Interface Control Logic
• Full Flag (FF) and Almost-Full (AF) flags synchronized by LKA
• Empty Flag (EF) and Almost-Empty (AE) flags synchronized y CLKB
• Passive parity checking on each Port
• Parity Generation can be selected for each Port
• Supports clock frequencies up to 67MHz

• Fast access times of 10ns
• Available in 132-pin Plastic Quad Flatpack (PQF) or pace-saving 120-pin Thin Quad Flatpack (PF)
• Low-power advanced CMOS technology
• Industrial temperature range (-40oC to +85oC) is available,tested to military elecrical specifications



Pinout

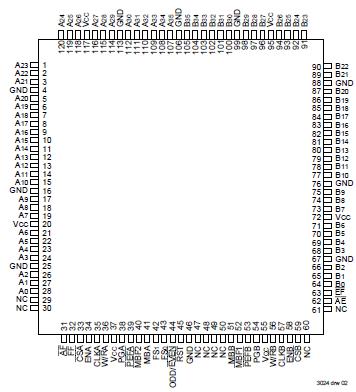

  Connection Diagram


Specifications

Symbol Rating
Commercial
Unit
VCC Supply Voltage Range
-0.5 to 7
V
VI(2) Input Voltage Range
-0.5 to VCC+0.5
V
VO(2) Output Voltage Range
-0.5 to VCC+0.5
V
IIK Input Clamp Current, (VI < 0 or VI > VCC)
±20
mA
IOK Output Clamp Current, (VO = < 0 or VO > VCC)
±50
mA
IOUT Continuous Output Current, (VO = 0 to VCC)
±50
mA
ICC Continuous Current Through VCC or GND
±500
mA
TA Operating Free Air Temperature Range
0 to 70
TSTG Storage Temperature Range
-65 to 150

Notes:
1. Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device.
These are stress ratings only and functional operation of the device at these or any other conditions beyond those
indicated under "Recommended Operating Conditions" is not implied. Exposure to absolute-maximum-rated conditions
for extended periods may affect device reliability.
2. The input and output voltage ratings may be exceeded provided the input and output current ratings are observed.



Description

The IDT723611 is a monolithic, high-speed, low-power,CMOS Synchronous (clocked) FIFO memory which supports
lock frequencies up to 67MHz and has read access times asfast as 10ns. The 64 x 36 dual-port FIFO buffers data from Port to Port B. The FIFO has flags to indicate empty and fullconditions, and two programmable flags, Almost-Full (AF) andAlmost-Empty (AE), to indicate when a selected number ofwords is stored in memory. Communication between eachport can take place through two 36-bit mailbox registers. Each mailbox register has a flag to signal when new mail has beenstored. Parity is checked passively on each port and may beignored if not desired. Parity generation can be selected fordata read from each port. Two or more devices may be usedin parallel to create wider data paths.

The IDT723611 is a synchronous (clocked) FIFO, meaningeach port employs a synchronous interface. All datatransfers through a port are gated to the LOW-to-HIGHtransition of a port clock by enable signals. The clocks foreach port are independent of one another and can be asyn-chronous or coincident. The enables for each port are arranged
to provide a simple bidirectional interface betweenmicroprocessors and/or buses with synchronous control.

The Full-Flag (FF) and Almost-Full (AF) flag of the FIFO aretwo-stage synchronized to the port clock that writes data intoits array (CLKA). The Empty Flag (EF) and Almost-Empty (AE)flag of the FIFO are two-stage synchronized to the port clockthat reads data from its array.

The IDT723611 is characterized for operation from 0°C to70°C.
