IDT72104

Features:

* 35ns parallel port access time, 45ns cycle time
* 50MHz serial input/output frequency
* Serial-to-parallel, parallel-to-serial, serial-to-serial, and parallel-to-parallel operations
* Expandable in both depth and width with no external components
* Flexishift(TM) - Sets programmable serial word width from 4 bits
   to any width with no external components
* Multiple flags: Full, Almost-Full (Full-1/8),Full-Minus-One, Empty,
    Almost-Empty (Empty + 1/8), Empty-Plus One, and Half-Full
* Asynchronous and simultaneous read or write operations
* Dual-Port, zero fall-through time architecture
* Retransmit capability in single-device mode
* Packaged in 44-pin PLCC
* Industrial temperature range (-40 to +85) is avail-able,
   tested to military electrical specifications


Application

* High-speed data acquisition systems
* Local area network (LAN) buffer
* High-speed modem data buffer
* Remote telemetry data buffer
* FAX raster video data buffer
* Laser printer engine data buffer
* High-speed parallel bus-to-bus communications
* Magnetic media controllers
* Serial link buffer

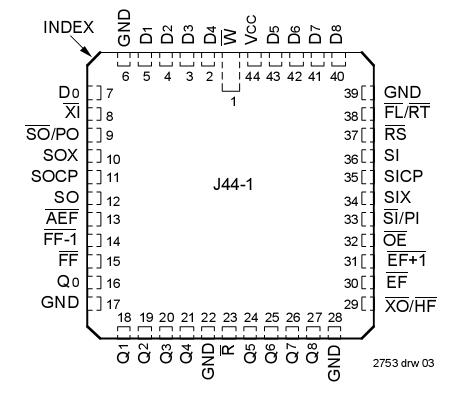

Pinout




Specifications

Symbol	Rating	Commercial & Industrial	Unit
VTERM	Terminal Voltage with Respect to GND	0.5 to +7.0	V
TA	Operating Temperature	0 to +70
TBIAS	Temperature Under Bias	55 to +125
TSTG	Storage Temperature	55 to +125
IOUT	DC Output Current	50	mA

Description

The IDT72104are high-speed Parallel-Serial FlFOs to be used with high-performance systems for functions such as serial communications,laser printer engine control and local area networks.

A serial input, a serial output and two 9-bit parallel ports make four modes of data transfer possible:serial-to-parallel,parallel-to-serial, serial-to-serial,and parallel-to-parallel.The IDT72104 are expandable in both depth and width for all of these operational configurations.
