Product Details

Description



Features:

*64K x 16 advanced high-speed CMOS Static RAM
*Equal access and cycle times
- Commercial: 10/12/15/20ns
- Industrial: 12/15/20ns
*One Chip Select plus one Output Enable pin
*Bidirectional data inputs and outputs directly LVTTL-compatible
*Low power consumption via chip deselect
*Upper and Lower Byte Enable Pins
*Single 3.3V power supply
*Available in 44-pin Plastic SOJ, 44-pin TSOP, and 48-Ball Plastic FBGA packages

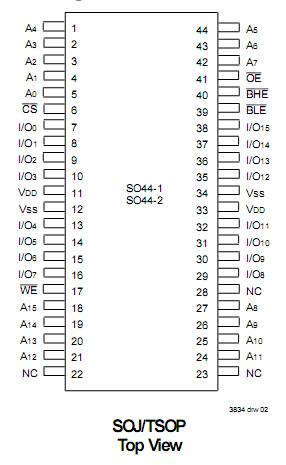

Pinout

Connection Diagram


Specifications

Symbol

Rating

Value

Unit

VDD

Supply Voltage Relative to VSS

-0.5 to +4.6

V

VIN, VOUT

Terminal Voltage Relative toVSS

-0.5 to VDD+0.5

V

TBIAS

Temperature Under Bias

-55 to +125

oC

TSTG

Storage Temperature

-55 to +125

oC

PT

Power Dissipation

1.25

W

IOUT

DC Output Current

50

mA




Description

The IDT71V016SA is a 1,048,576-bit high-speed Static RAM organized as 64K x 16. It is fabricated using IDT's high-perfomance, high-reliability CMOS technology. This state-of-the-art technology, combined with inno- vative circuit design techniques, provides a cost-effective solution for high- speed memory needs.

The IDT71V016SA has an output enable pin which operates as fast as 5ns, with address access times as fast as 10ns. All bidirectional inputs and outputs of the IDT71V016 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

The IDT71V016SA is packaged in a JEDEC standard 44-pin Plastic SOJ, a 44-pin TSOP Type II, and a 48-ball plastic 7 x 7 mm FBGA.
