IDT71T024

Features:

• 128K x 8 Organization
• Wide Operating Voltage Range:  1.8V to 2.7V
• Speed Grades:  150ns, 200ns
• Low Operating Power:  11mA (max)
• Low Standby Power:  5µA (max)
• Low-Voltage Data Retention:  1.5V (min)
• Available in 32-pin, 13.4mm x 8mm Type I TSOP pack-
  age

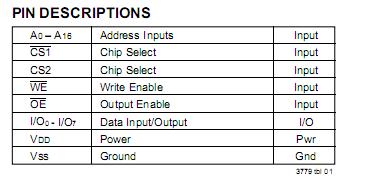

Pinout




Specifications

Symbol	Rating	Com'l. and Ind'l.	Unit
VTERM(2)	Terminal Voltage with Respect to VSS	0.5 to +3.6	V
VTERM(3)	Terminal Voltage with Respect to VSS	0.5 to VDD+0.5V	V
TBIAS	Temperature Under Bias	55 to +125	°C
TSTG	Storage Temperature	55 to +125	°C
PT	Power Dissipation	1.0	W
IOUT	DC Output Current	20	mA

NOTES:                                                                           3779 tbl 03
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device.
    This is a stress rating only  and functional operation of the device at these or any other
    conditions above those indicated in the operational sections of this
    specification is not implied.  Exposure to absolute maximum rating
    conditions for extended periods may affect reliability.
2. V_DD terminals only.
3. Input, Output,and I/O terminals; 3.6V maximum.


Description

The IDT71T024 is a 1,048,576-bit very low-power Static RAM organized as 128K x 8.  It is fabricated using IDT's high-reliability CMOS technology.  This state-of-the-art technology,combined with innovative circuit design techniques, provides a cost-effective solution for low-power memory needs.  It uses a 6-transistor memory cell.

Operation is from a single extended-range 2.5V supply.This extended supply range makes the device ideally suited for unregulated battery-powered applications.  Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

The IDT71T024 is packaged in a JEDEC standard 32-pin TSOP Type I.
