Product Details

Description



Features:

` 64K x 16 advanced high-speed CMOS Static RAM
` Equal access and cycle times
   - Commercial: 10/12/15/20ns
   - Industrial: 12/15/20ns
` One Chip Select plus one Output Enable pin
` Bidirectional data inputs and outputs directly LVTTL-compatible
` Low power consumption via chip deselect
` Upper and Lower Byte Enable Pins
` Single 2.5V power supply
` Available in 44-pin Plastic SOJ, 44-pin TSOP, and 48-Ball Plastic FBGA packages

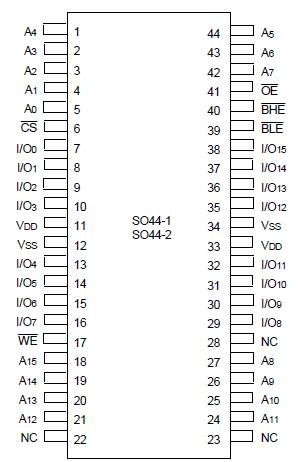

Pinout

Connection Diagram


Specifications

Symbol
Rating
Value
Unit
VDD
Supply Voltage Relativ to VSS
0.3 to +3.6
V
VIN, VOUT
Terminal Voltage Relative to VSS
0.3 to VDD+0.3
V
TBIAS
Temperature Under Bias
55 to +125
°C
TSTG
Storage Temperature
55 to +125
°C
PT
Power Dissipation
1.25
W
IOUT
DC Output Current
50
mA

NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The IDT71T016SA is a 1,048,576-bit high-speed Static RAM organized as 64K x 16. It is fabricated using IDT's high-perfomance, high-reliability CMOS technology. This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for highspeed memory needs.

The IDT71T016SA has an output enable pin which operates as fast as 5ns, with address access times as fast as 10ns. All bidirectional inputs and outputs of the IDT71T016 are LVTTL-compatible and operation is from a single 2.5V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

The IDT71T016SA is packaged in a JEDEC standard a 44-pin Plastic SOJ, 44-pin TSOP Type II, and a 48-ball plastic 7 x 7 mm FBGA.
