Features: • 128K x 8 Organization• Wide Operating Voltage Range: 2.7V to 3.6V• Speed Grades: 70ns, 100ns• Low Operating Power: 25mA (max)• Low Standby Power: 5mA (max)• Low-Voltage Data Retention: 1.5V (min)• Available in 32-pin, 13.4mm x 8mm Type I TSOP p...
IDT71L024: Features: • 128K x 8 Organization• Wide Operating Voltage Range: 2.7V to 3.6V• Speed Grades: 70ns, 100ns• Low Operating Power: 25mA (max)• Low Standby Power: 5mA (max)&...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Rating | Com'l. and Ind'l. | Unit |
VTERM(2) | Terminal Voltage with Respect to VSS |
0.5 to +4.6 | V |
VTERM(3) | Terminal Voltage with Respect to VSS |
0.5 to VDD+0.5V | V |
TBIAS | Temperature Under Bias | 55 to +125 | |
TSTG | Storage Temperature | 55 to +125 | |
PT | Power Dissipation | 1.0 | W |
IOUT | DC Output Current | 20 | mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VDD terminals only.
3. Input, Output,and I/O terminals; 4.6V maximum.
The IDT71L024 is a 1,048,576-bit very low-power Static RAM organized as 128K x 8. It is fabricated using IDT's highreliability CMOS technology. This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for low-power memory needs. It usesa 6-transistor memory cell.
All input and output signals of the IDT71L024 are LVTTLcompatible and operation is from a single extended-range 3.3V supply. This extended supply range makes the device ideally suited for unregulated battery-powered applications. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

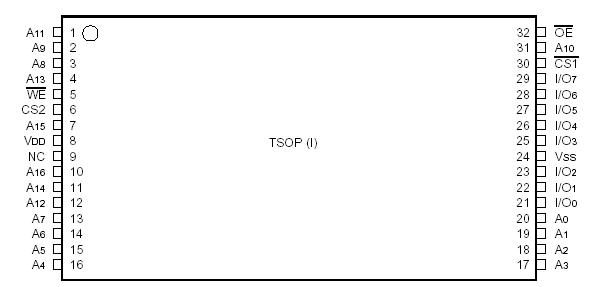

The IDT71L024 is packaged in a JEDEC standard 32-pin TSOP Type I.
