IDT71L016

Features: •64K x 16 Organization•Wide Operating Voltage Range: 2.7V to 3.6V•Speed Grades: 70ns, 100ns•Low Operating Power: 45mA (max)•Low Standby Power: 5µA (max)•Low-Voltage Data Retention: 1.5V (min)•Available in a 44-pin TSOP packagePinoutSpecific...

product image

IDT71L016 Picture
See larger image
SeekIC No. : 004372232 Detail

IDT71L016: Features: •64K x 16 Organization•Wide Operating Voltage Range: 2.7V to 3.6V•Speed Grades: 70ns, 100ns•Low Operating Power: 45mA (max)•Low Standby Power: 5µA (max)...

IDT71L016 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT71L016
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•64K x 16 Organization
•Wide Operating Voltage Range:  2.7V to 3.6V
•Speed Grades:  70ns, 100ns
•Low Operating Power:  45mA (max)
•Low Standby Power:  5µA (max)
•Low-Voltage Data Retention:  1.5V (min)
•Available in a 44-pin TSOP package

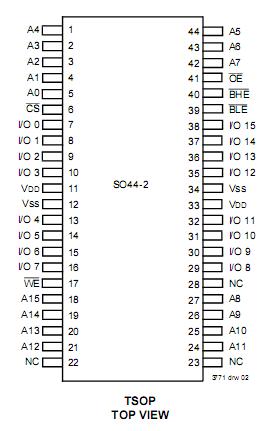

Pinout

Connection Diagram


Specifications

Symbol

Rating

Com'l. and Ind'l

Unit

VTERM(2)

Terminal Voltage with
Respect to VSS

0.5 to+4.6

V

VTERM(3)

Terminal Voltage with
Respect to VSS

0.5 to VDD + 0.5V

V

TBIAS

Temperature Under Bias

55 to +125

oC

TSTG

Storage Temperature

55 to +125

oC

PT

Power Dissipation

1.0

W

IOUT

DC Output Current

20

mA




Description

The IDT71L016 is a 1,048,576-bit very low-power Static RAM organized as 64K x 16.  It is fabricated using IDT's high- reliability CMOS technology.  This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for low-power memory needs.  It uses a 6-transistor memory cell.

All input and output signals of the IDT71L016 are LVTTL-compatible and operation is from a single extended-range 3.3V supply.  This extended supply range makes the device ideally suited for unregulated battery-powered applications. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

The IDT71L016 is packaged in a JEDEC standard 44-pin TSOP Type II.
