IDT7198S

Features: • Fast Output Enable (OE) pin available for added system flexibility• Multiple Chip Selects (CS1, CS2) simplify system design and operation• High speed (equal access and cycle times) - Military: 20/25/35/45/55/70/85ns (max.)• Low power consumption• Battery b...

product image

IDT7198S Picture
See larger image
SeekIC No. : 004372222 Detail

IDT7198S: Features: • Fast Output Enable (OE) pin available for added system flexibility• Multiple Chip Selects (CS1, CS2) simplify system design and operation• High speed (equal access and ...

IDT7198S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT7198S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast Output Enable (OE) pin available for added system
   flexibility
• Multiple Chip Selects (CS1, CS2) simplify system design
   and operation
• High speed (equal access and cycle times)
   - Military: 20/25/35/45/55/70/85ns (max.)
• Low power consumption
• Battery back-up operation-2V data retention (L version
   only)
• 24-pin CERDIP, high-density 28-pin leadless chip carrier,
   and 24-pin CERPACK packaging available
• Produced with advanced CMOS technology
• Bidirectional data inputs and outputs
• Inputs/outputs TTL-compatible
• Military product compliant to MIL-STD-883, Class B


Pinout

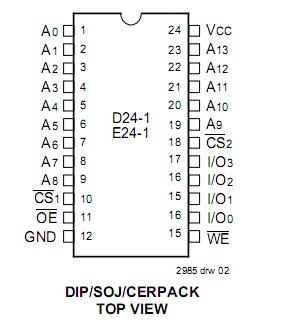

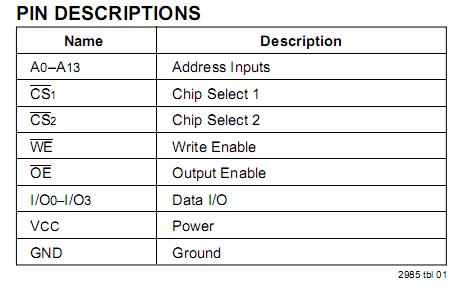

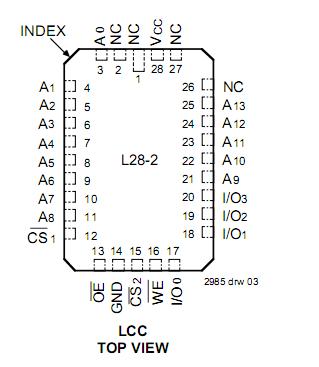

Connection Diagram Connection Diagram Connection Diagram


Specifications

Symbol
Rating
Mil.
Unit
VTERM
Terminal Voltage
with Respect to GND
0.5 to +7.0
V
TA
Operating Temperature
 55 to +125
°C
TBIAS
Temperature Under Bias
65 to +135
°C
TSTG
Storage Temperature
65 to +150
°C
PT
Power Dissipation
1.0
W
IOUT
DC Output Current
20
mA

NOTE:                                                                                                           2985 tbl 03
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.



Description

The IDT7198S is a 65,536 bit high-speed static RAM orga nized as 16K x 4. It is fabricated using IDT's high-performance, high-reliability technology-CMOS. This state-of-the art technology, combined with innovative circuit design techniques, provides a cost effective approach for memory inten-
sive applications.

Access times as fast as 20ns are available. The IDT7198S offers a reduced power standby mode, ISB1, which is activated when  CS1  or  CS2 goes HIGH. This capability decreases power, while enhancing system reliability. The low-power version (L) also offers a battery backup data retention capability where the circuit typically consumes only 30µW when operating from a 2V battery.

All inputs and outputs are TTL-compatible and operate from a single 5V supply.

The IDT7198S is packaged in either a 24-pin ceramic DlP, 28-pin leadless chip carrier, and 24-pin CERPACK. Military grade product is manufactured in compliance with the latest revision of MIL-STD-883, Class B, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
