High-speed access
Commercial: 20/25/35/55/100ns (max.)
Industrial: 25ns (max.)
Military: 25/35/55/100ns (max.) Low-power operation
IDT7132/42SA Active: 325mW (typ.) Standby: 5mW (typ.)
IDT7132/42LA Active: 325mW (typ.) Standby: 1mW (typ.)MASTER IDT7132 easily expands data bus width to 16-or-more bits using SLAVE IDT7142 On-chip port arbitration logic (IDT7132 only) BUSY output flag on IDT7132; BUSY input on IDT7142 Battery backup operation -2V data retention (LA only) TTL-compatible, single 5V ±10% power supply
Available in 48-pin DIP, LCC and Flatpack, and 52-pin PLCC packages Military product compliant to MIL-PRF-38535 QML
Industrial temperature range (40°C to +85°C) is available for selected speeds
Symbol |
Rating |
Commercial & Industrial |
Military |
Unit |
VTERM(2) |
Terminal Voltagewith Respectto GND |
-0.5 to +7.0 |
-0.5 to +7.0 |
V |
TBIAS |
TemperatureUnder Bias |
-55 to +125 |
-65 to +135 |
|
TSTG |
StorageTemperature |
-65 to +150 |
-65 to +150 |
|
IOUT |
DC OutputCurrent |
50 |
50 |
mA |
The IDT7142SA/LA are high-speed 2K x 8 Dual-Port Static RAMs.
The IDT7142SA/LA is designed to be used as a stand-alone 8-bit Dual-Port RAM r as a "MASTER" Dual-Port RAM together with the IDT7142 "SLAVE"Dual-Port in 16-bit-or-more word width systems. Using the IDT MASTER/ SLAVE Dual-Port RAM approach in 16-or-more-bit memory system pplications results in full-speed, error-free operation without theneed for dditional discrete logic. Both devices provide two independent ports with separate control, ddress, and l/O pins that permit independent, asynchronous access for eads or writes to any location in memory. An automatic power down eature, controlled by CE permits the on-chip circuitry of each port to enter a very low standby power modea very low standby power mode.
Fabricated using IDT's CMOS high-performance technology, these devices of the IDT7142SA/LA typically operate on only 325mW of power. Low-power (LA) versions offer battery backup data retention capability, with each Dual- Port typically consuming 200µW from a 2V battery.

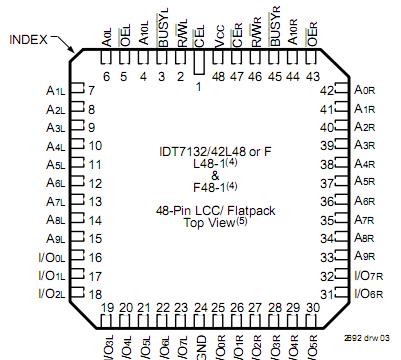

The IDT7142SA/LA devices are packaged in a 48-pin sidebraze or plastic DIPs, 48-pin LCCs, 52-pin PLCCs, and 48-lead flatpacks. Military grade product is manufactured in compliance with the latest revision of MIL-PRF-38535 QML, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
