Features: IDT70V35/34 easily expands data bus width to 36 bits ormore using the Master/Slave select when cascading more than one device M/S = VIH for BUSY output flag on Master M/S = VIL for BUSY input on Slave BUSY and Interrupt Flag On-chip port arbitration logic Full on-chip hardware support o...
IDT70V35: Features: IDT70V35/34 easily expands data bus width to 36 bits ormore using the Master/Slave select when cascading more than one device M/S = VIH for BUSY output flag on Master M/S = VIL for BUSY i...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Rating |
Commercial
& Industrial |
Unit |
VTERM |
Terminal Voltage with respect to GND |
-0.5 to +4.6 |
V |
VTER(2) |
Terminal Voltage |
-55 to +125 |
°C |
TSTG |
Temperature Under Bias |
-65 to +150
|
°C |
IOUT |
DC Output Current |
50
|
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VTERM must not exceed Vcc + 0.3V.
The IDT70V35/34 is a high-speed 8/4K x 18 Dual-Port Static RAM. The IDT70V35/34 is designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 36-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.
This IDT70V35 provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode.
Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 430mW of power.

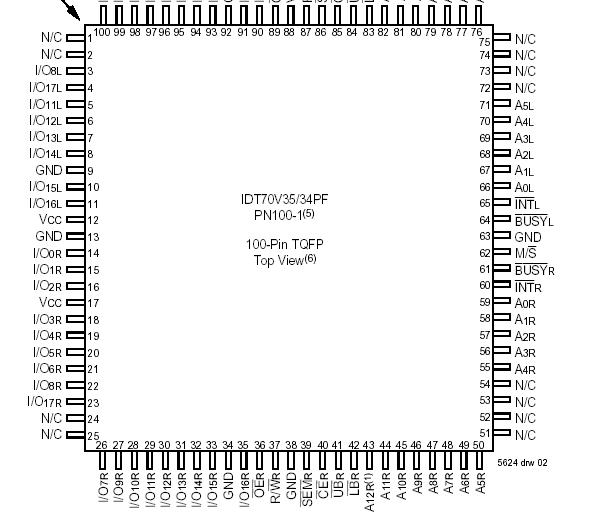

The IDT70V35/34 is packaged in a plastic 100-pin Thin Quad Flatpack.
