IDT70V06S/L

Features: *True Dual-Ported memory cells which allow simultaneous reads of the same memory location*High-speed accessCommercial: 15/20/25/35/55ns (max.)Industrial: 20/25/35/55ns (max.)*Low-power operationIDT70V06S Active: 400mW (typ.) Standby: 3.3mW (typ.)IDT70V06L Active: 380mW (typ.) Standby: 66...

product image

IDT70V06S/L Picture
See larger image
SeekIC No. : 004372102 Detail

IDT70V06S/L: Features: *True Dual-Ported memory cells which allow simultaneous reads of the same memory location*High-speed accessCommercial: 15/20/25/35/55ns (max.)Industrial: 20/25/35/55ns (max.)*Low-power ope...

IDT70V06S/L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT70V06S/L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*True Dual-Ported memory cells which allow simultaneous
reads of the same memory location
*High-speed access
Commercial: 15/20/25/35/55ns (max.)
Industrial: 20/25/35/55ns (max.)
*Low-power operation
IDT70V06S
Active: 400mW (typ.)
Standby: 3.3mW (typ.)
IDT70V06L
Active: 380mW (typ.)
Standby: 660mW (typ.)
*IDT70V06 easily expands data bus width to 16 bits or more
using the Master/Slave select when cascading more than
one device
*M/S = VIH for BUSY output flag on Master
M/S = VIL for BUSY input on Slave
*Interrupt Flag
*On-chip port arbitration logic
*Full on-chip hardware support of semaphore signaling
between ports
*Fully asynchronous operation from either port
*Battery backup operation-2V data retention
*TTL-compatible, single 3.3V (±0.3V) power supply
*Available in 68-pin PGA and PLCC, and a 64-pin TQFP
*Industrial temperature range (-40°C to +85°C) is available
for selected speeds


Pinout

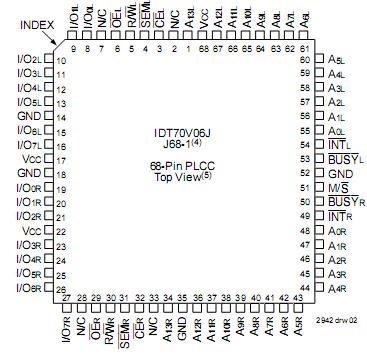

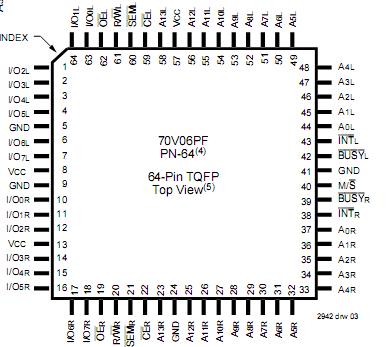

Connection Diagram Connection Diagram


Specifications

Symbol

Rating

Commercial
& Industrial

Unit

VTERM(2)

Terminal Voltage
with Respect to GND

0.5 to+4.6

V

TBIAS

Temperature Under Bias

55 to +125

oC

TSTG

Storage Temperature

55 to +125

oC

IOUT

DC Output Current

50

mA




Description

The IDT70V06S/L is a high-speed 16K x 8 Dual-Port Static RAM.  TheIDT70V06 is designed to be used as a stand-alone 128K-bit Dual-Port Static RAM or as a combination MASTER/SLAVE Dual-Port Static RAM for 16-bit-or-more word systems. Using the IDT MASTER/SLAVE Dual-Port Static RAM approach in 16-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.

This IDT70V06S/L provides two independent ports with separate control,address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to entera very low standby power mode.

Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 400mW of power.

The IDT70V06S/L is packaged in a ceramic 68-pin PGA and PLCC and a 64-pin thin quad flatpack (TQFP).
