Features: ` True Dual-Port memory cells which allow simultaneous access of the same memory location` High-speed access Commercial: 8/10/12/15ns (max.) Industrial: 10/12ns (max.)` RapidWrite Mode simplifies high-speed consecutive write cycles` Dual chip enables allow for depth expansion without ext...
IDT70T6519S: Features: ` True Dual-Port memory cells which allow simultaneous access of the same memory location` High-speed access Commercial: 8/10/12/15ns (max.) Industrial: 10/12ns (max.)` RapidWrite Mode sim...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Rating |
Commercial & Industrial |
Unit |
VTERM (VDD) |
VDD Terminal Voltage with Respect to GND |
-0.5 to 3.6 |
V |
VTERM(2) (VDDQ) |
VDDQ Terminal Voltage with Respect to GND |
-0.3 to VDDQ + 0.3 |
V |
VTERM(2) (INPUTS and I/O's) |
Input and I/O Terminal Voltage with Respect to GND |
-0.3 to VDDQ + 0.3 |
V |
TBIAS(3) | Temperature Under Bias |
-55 to +125 |
oC |
TSTG | Storage Temperature |
-65 to +150 |
oC |
TJN | Junction Temperature |
+150 |
oC |
IOUT(For VDDQ = 3.3V) | DC Output Current |
50 |
mA |
IOUT(For VDDQ = 2.5V) | DC Output Current |
40 |
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. This is a steady-state DC parameter that applies after the power supply has reached its nominal operating value. Power sequencing is not necessary; however, the voltage on any Input or I/O pin cannot exceed VDDQ during power supply ramp up.
3. Ambient Temperature under DC Bias. No AC Conditions. Chip Deselected.

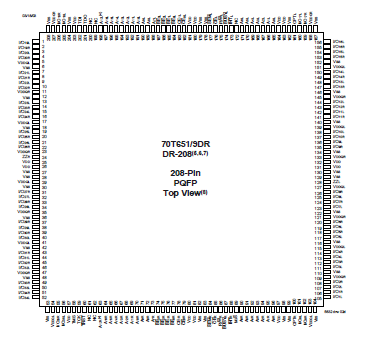

The IDT70T6519S is a high-speed 256/128K x 36 Asynchronous Dual-Port Static RAM. The IDT70T6519S is designed to be used as a stand-alone 9216/4608K-bit Dual-Port RAM or as a combination MASTER/ SLAVE Dual-Port RAM for 72-bit-or-more word system. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 72-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.
This device provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feature controlled by the chip enables (either CE0 or CE1) permit the on-chip circuitry of each port to enter a very low standby power mode.
The IDT70T6519S has a RapidWrite Mode which allows the designer to perform back-to-back write operations without pulsing the R/W input each cycle. This is especially significant at the 8 and 10ns cycle times of the IDT70T651/9, easing design considerations at these high performance levels.
The IDT70T6519S can support an operating voltage of either 3.3V or 2.5V on one or both ports, controlled by the OPT pins. The power supply for the core of the device (VDD) is at 2.5V.
