IDT709179L

Features:

True Dual-Ported memory cells which allow simultaneous
    access of the same memory location
High-speed clock to data access
    Commercial: 7.5/9/12ns (max.)
    Industrial: 9ns (max)
Low-power operation
    IDT709179L
        Active: 1.2W (typ.)
        Standby: 2.5mW (typ.)
Flow-Through or Pipelined output mode on either Port via
    the ,FT/PIPE pins
Counter enable and reset features
Dual chip enables allow for depth expansion without additional logic
Full synchronous operation on both ports
    4ns setup to clock and 0ns hold on all control, data, and
        address inputs
    Data input, address, and control registers
    Fast 7.5ns clock to data out in the Pipelined output mode
    Self-timed write allows fast cycle time
    12ns cycle time, 83MHz operation in Pipelined output mode
 TTL- compatible, single 5V (±10%) power supply
 Industrial temperature range (40°C to +85°C) is
    available for selected speeds
 Available in a 100-pin Thin Quad Flatpack (TQFP) package

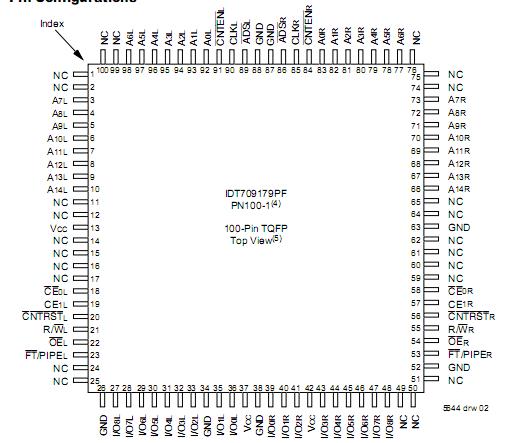

Pinout

NOTES:
1. All VCC pins must be connected to power supply.
2. All GND pins must be connected to ground.
3. Package body is approximately 14mm x 14mm x 1.4mm
4. This package code is used to reference the package diagram.
5. This text does not indicate orientation of the actual part-marking.

Specifications

Symbol	Rating	Commercial & Industrial	UNIT
VTERM(2)	Terminal Voltage with Respect to GND	-0.5 to +7.0	V
TBIAS	Temperature Under Bias	-55 to +125	°C
TSTG	Storage Temperature	-65 to +150	°C
IOUT	DC Outpu Current	50	mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device.  This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

2. VTERM must not exceed Vcc + 10% for more than 25% of the cycle time or 10ns maximum, and is limited to < 20mA for the period of VTERM > Vcc + 10%.

Description

The IDT709179L is a high-speed 32K x 9 bit synchronous Dual-Port RAM. The memory array utilizes Dual-Port memory cells to allow simultaneous access of any address from both ports. Registers on control, data, and address inputs provide minimal setup and hold times. The timing latitude provided by this approach allows systems to be designed with very short cycle times.

With an input data register, the IDT709179L has been optimized for applications having unidirectional or bidirectional data flow in bursts.An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 1.2W of power.
