Features:

` True Dual-Ported memory cells which allow simultaneous access of the same memory location
` High-speed clock to data access
   Commercial: 9/12/15ns (max.)
` Low-power operation IDT709089S
   Active: 950mW (typ.)
   Standby: 5mW (typ.)
   IDT709089L
   Active: 950mW (typ.)
   Standby: 1mW (typ.)
` Flow-Through or Pipelined output mode on either port via the FT /PIPE pin
` Counter enable and reset features
` Dual chip enables allow for depth expansion without additional logic
` Full synchronous operation on both ports
   4ns setup to clock and 1ns hold on all control, data, and address inputs
   Data input, address, and control registers
   Fast 9ns clock to data out in the Pipelined output mode
   Self-timed write allows fast cycle time
   15ns cycle time, 66MHz operation in the Pipelined output mode
` TTL- compatible, single 5V (±10%) power supply
` Industrial temperature range (40°C to +85°C) is available for selected speeds
` Available in 100-pin Thin Quad Flatpack (TQFP) package


Pinout

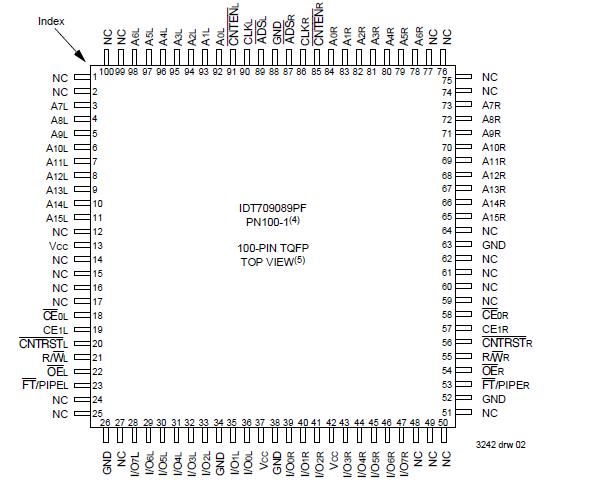

Connection Diagram


Specifications

Symbol
 Rating
Commercial
& Industrial
Unit
VTERM(2)
 Terminal Voltage
with Respect
to GND
-0.5 to +7.0
V
TBIAS
 Temperature
Under Bias
-55 to +125
TSTG
 Storage
Temperature
-55 to +125
IOUT
 DC Output
Current
50
mA

1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VTERM must not exceed Vcc + 10% for more than 25% of the cycle time or 10ns maximum, and is limited to < 20mA for the period of VTERM > Vcc + 10%.


Description

The IDT709089S/L is a high-speed 64K x 8 bit synchronous Dual-Port RAM. The memory array utilizes Dual-Port memory cells to allow simultaneous access of any address from both ports. Registers on control, data, and address inputs provide minimal setup and hold times. The timing latitude provided by this approach allows systems to be designed with very short cycle times.

With an input data register, the IDT709089S/L has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE 0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 950mW of power.
