Features:

High-speed access
Military: 25/35ns (max.)
Commercial: 20/25/35ns (max.)
Low-power operation
IDT7052S
Active: 750mW (typ.)
Standby: 7.5mW (typ.)
IDT7052L
Active: 750mW (typ.)
Standby: 1.5mW (typ.)
True FourPort memory cells which allow simultaneous access of the same memory locations
Fully asynchronous operation from each of the four ports: P1, P2, P3, P4
Versatile control for write-inhibit: separate BUSY input to control write-inhibit for each of the four ports
Battery backup operation-2V data retention
TTL-compatible; single 5V (±10%) power supply
Available in 120 pin and 132 pin Thin Quad Flatpacks and 108 pin PGA
Military product compliant to MIL-PRF-38535 QML
Industrial temperature range (40°C to +85°C) is available for selected speeds



Pinout

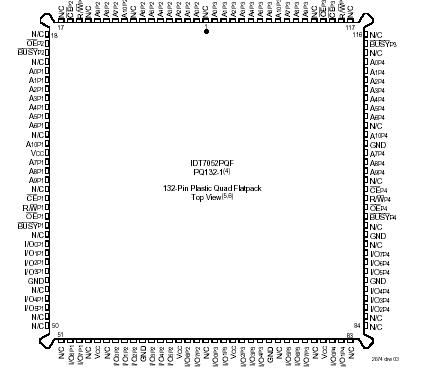

Connection Diagram
NOTES:
1. All VCC pins must be connected to the power supply.
2. All GND pins must be connected to the ground supply.
3. PQ132-1 package body is approximately
.95 in x .95 in x .14 in.
PN120-1 package body is approximately
14mm x 14mm x 1.4mm.
4. This package code is used to reference the package diagram.
5. This text does not indicate orientation of the actual part-marking
6. The side of the package containing pin1 may have a bevelled


Specifications

Symbol
Rating
Com'l & Ind'l
Unit
Military
VTERM
Terminal Voltage
with respect to GND
0.5 to +4.5
V
 -0.5 to +7.0
TSTG
Temperature Under
Bias
55 to +125
°C
 -65 to +135
TSTG
Storage
Temperature
-55 to +125
mA
 -65 to +150
IOUT
DC Output Current
50
mA
50

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may
cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above those
indicated in the operational sections of this specification is not implied. Exposure
to absolute maximum rating conditions for extended periods may affect
reliability.
2. VTERM must not exceed Vcc + 10% for more than 25% of the cycle time or 10ns
maximum, and is limited to < 20mA for the period of VTERM > VCC + 10%.


Description

The IDT7052S/L is a high-speed 2K x 8 FourPort™ Static RAM designed to be used in systems where multiple access into a common RAM is required. This FourPort Static RAM offers increased system performance in multiprocessor systems that have a need to communicate in real time and also offers added benefit for high-speed systems in which multiple access is required in the same cycle.
