Features:

M/S = VIH for BUSY output flag on Master, M/S = VIL for BUSY input on Slave
Interrupt Flag
On-chip port arbitration logic
Full on-chip hardware support of semaphore signaling between ports
Fully asynchronous operation from either port
Separate upper-byte and lower-byte controls for multiplexed bus and bus matching compatibility
TTL-compatible, single 5V (±10%) power supply
Available in a 100-pin TQFP
Industrial temperature range (40°C to +85°C) is available for selected speeds
reads of the same memory location
High-speed access
Commercial: 15/20ns (max.)
Low-power operation
IDT7038L
Active: 1W (typ.)
Standby: 1mW (typ.)
Dual chip enables allow for depth expansion without external logic
IDT7038 easily expands data bus width to 36 bits or
more using the Master/Slave select when cascading more than one device

Pinout

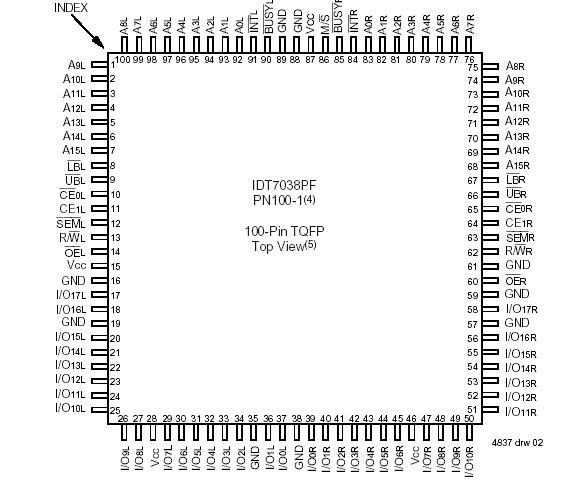

Connection Diagram

NOTES:
1. All Vcc pins must be connected to power supply.
2. All GND pins must be connected to ground supply.
3. Package body is approximately 14mm x 14mm x 1.4mm.
4. This package code is used to reference the package diagram.
5. This text does not indicate orientation of the actual part marking.

Specifications

Symbol	Rating	Com'l & Ind'l	Unit	Military
V_TERM	Terminal Voltage with respect to GND	0.5 to +4.5	V	-0.5 to +7.0
T_STG	Temperature Under Bias	55 to +125	°C	-65 to +135
T_STG	Storage Temperature	-65 to +150	mA	-65 to +150
I_OUT	DC Output Current	50	mA	50

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may
cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above those
indicated in the operational sections of this specification is not implied. Exposure
to absolute maximum rating conditions for extended periods may affect
reliability.
2. VTERM must not exceed Vcc + 10% for more than 25% of the cycle time or 10ns
maximum, and is limited to < 20mA for the period of VTERM > Vcc + 10%.

Description

The IDT7038L is a high-speed 64K x 18 Dual-Port Static RAM. The IDT7038 is designed to be used as a stand-alone 1152K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 36-bit-ormore word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 36-bit or wider memory system applications results in fullspeed, error-free operation without the need for additional discrete logic.

This IDT7038L provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feature controlled by the chip enables (CE0 and CE1) permit the on-chip circuitry of each port to enter a very low standby power mode. Fabricated using IDT's CMOS high-performance technology, the IDT7038L typically operate on only1W of power. The IDT7038L is packaged in a 100-pin Thin Quad Flatpack (TQFP).
