IDT7024S/L

Features: using the Master/Slave select when cascading more than one device M/S = H for BUSY output flag on Master M/S = L for BUSY input on Slave Interrupt Flag On-chip port arbitration logic Full on-chip hardware support of semaphore signaling between ports Fully asynchronous operation from eith...

product image

IDT7024S/L Picture
See larger image
SeekIC No. : 004372008 Detail

IDT7024S/L: Features: using the Master/Slave select when cascading more than one device M/S = H for BUSY output flag on Master M/S = L for BUSY input on Slave Interrupt Flag On-chip port arbitration logic Full ...

IDT7024S/L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT7024S/L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

using the Master/Slave select when cascading more than one device
M/S = H for BUSY output flag on Master M/S = L for BUSY input on Slave
Interrupt Flag
On-chip port arbitration logic
Full on-chip hardware support of semaphore signaling between ports
Fully asynchronous operation from either port
Battery backup operation-2V data retention
TTL-compatible, single 5V (±10%) power supply
Available in 84-pin PGA, Flatpack, PLCC, and 100-pin Thin Quad Flatpack
Industrial temperature range (40°C to +85°C) is available for selected speeds
True Dual-Ported memory cells which allow simultaneous reads of the same memory location
High-speed access
Military: 20/25/35/55/70ns (max.)
Industrial: 55ns (max.)
Commercial: 15/17/20/25/35/55ns (max.)
 Low-power operation
IDT7024S
Active: 750mW (typ.)
Standby: 5mW (typ.)
IDT7024L
Active: 750mW (typ.)
Standby: 1mW (typ.)
Separate upper-byte and lower-byte control for multiplexed bus compatibility


Pinout

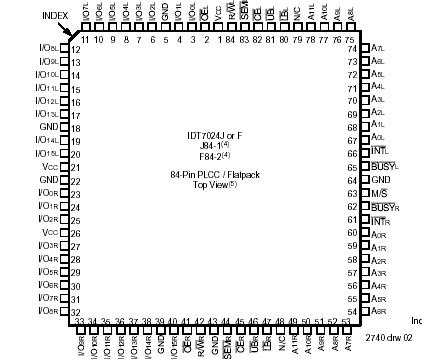

Connection Diagram
NOTES:
1. All VCC pins must be connected to the power supply.
2. All GND pins must be connected to the ground supply.
3. J84-1 package body is approximately 1.15 in x 1.15 in x .17 in.
F84-2 package body is approximately 1.17 in x 1.17 in x .11 in.
PN100-1 package body is approximately 14mm x 14mm x 1.4mm.
4. This package code is used to reference the package diagram.
5. This text does not indicate orientation of the actual part-marking.


Specifications

Symbol
Rating
Com'l & Ind'l
Unit
Military
VTERM
Terminal Voltage
with respect to GND
0.5 to +4.5
V
 -0.5 to +7.0
TSTG
Temperature Under
Bias
55 to +125
°C
 -65 to +135
TSTG
Storage
Temperature
-55 to +125
mA
 -65 to +150
IOUT
DC Output Current
50
mA
50
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS
may cause permanent damage to the device. This is a stress rating only
and functional operation of the device at these or any other conditions above
those indicated in the operational sections of this specification is not implied.
Exposure to absolute maximum rating conditions for extended periods may
affect reliability.
2. VTERM must not exceed Vcc +10% for more than 25% of the cycle time or 10ns
maximum, and is limited to < 20mA for the period over VTERM > Vcc + 10%.


Description

The IDT7024S/L is a high-speed 4Kx 16 Dual-Port Static RAM. The IDT7024 is designed to be used as a stand-alone 64K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit or more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 32-bit or wider memory system applications results in full-speed, errorfree operation without the need for additional discrete logic.

This IDT7024S/L provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feature controlled by chip enable (CE) permits the on-chip circuitry of each port to enter a very low standby power mode. Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 750mW of power. Low-power (L) versions offer battery backup data retention capability with typical power consumption of 500µW from a 2V battery. The IDT7024S/L is packaged in a ceramic 84-pin PGA, an 84-pin Flatpack and PLCC, and a 100-pin TQFP. Military grade product is manufactured in compliance with the latest revision of MIL-PRF-38535 QML, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
