IDT7007L

Features: ` True Dual-Ported memory cells which allow simultaneous reads of the same memory location` High-speed access - Military: 25/35/55ns (max.) - Industrial: 55ns (max.) - Commercial: 15/20/25/35/55ns (max.)` Low-power operation - IDT7007S Active: 850mW (typ.) Standby: 5mW (typ.) - IDT7007L ...

product image

IDT7007L Picture
See larger image
SeekIC No. : 004371986 Detail

IDT7007L: Features: ` True Dual-Ported memory cells which allow simultaneous reads of the same memory location` High-speed access - Military: 25/35/55ns (max.) - Industrial: 55ns (max.) - Commercial: 15/20/25...

IDT7007L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT7007L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` True Dual-Ported memory cells which allow simultaneous reads of the same memory location
` High-speed access
   - Military: 25/35/55ns (max.)
   - Industrial: 55ns (max.)
   - Commercial: 15/20/25/35/55ns (max.)
` Low-power operation
   - IDT7007S
       Active: 850mW (typ.)
       Standby: 5mW (typ.)
   - IDT7007L
       Active: 850mW (typ.)
       Standby: 1mW (typ.)
` IDT7007 easily expands data bus width to 16 bits or more using the Master/Slave select when cascading more than
one device
` M/S = H for BUSY output flag on Master,M/S = L for BUSY input on Slave
` Interrupt Flag
` On-chip port arbitration logic
` Full on-chip hardware support of semaphore signaling between ports
` Fully asynchronous operation from either port
` TTL-compatible, single 5V (±10%) power supply
` Available in 68-pin PGA and PLCC and a 80-pin TQFP
` Industrial temperature range (-40°C to +85°C) is available for selected speeds


Pinout

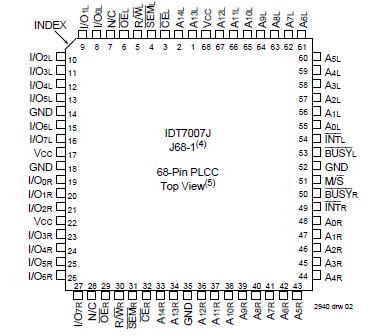

Connection Diagram


Specifications

Symbol Rating
Commercial
& Industrial
Military
Unit
VTERM(2) Terminal Voltage with Respect to GND
0.5 to +7.0
0.5 to +7.0
V
TBIAS Temperature Under Bias
55 to +125
55 to +135
TSTG Storage Temperature
55 to +120
65 to +150
IOUT DC Output Current
50
50
mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sec-tions of this specification is not implied. Exposure to absolute maxi-mum rating conditions for extended periods may affect reliability.
2. VTERM must not exceed Vcc + 10% for more than 25% of the cycle time or 10ns maximum, and is limited to 20mA for the period of VTERM Vcc + 10%.


Description

The IDT7007L is a high-speed 32K x 8 Dual-Port Static RAM. The IDT7007 is designed to be used as a stand-alone 256K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 16-bit-or-more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-bit or wider memory system applications results in full-speed, errorfree operation without the need for additional discrete logic.

This IDT7007L provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very LOW standby power mode.

Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 850mW of power.

The IDT7007L is packaged in a 68-pin pin PGA, a 68-pin PLCC, and an 80-pin thin quad flatpack, TQFP. Military grade product is manufactured in compliance with the latest revision of MIL-PRF-38535 QML, Class B, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
