Product Details

Description



Features:

• High performance 1:10 clock driver for general purpose applications
• Operates up to 200MHz at VDD = 3.3V
• Pin-to-pin skew < 50ps
• VDD range: 2.3V to 3.6V
• Output enable glitch suppression
• Distributes one clock input to two banks of five outputs
• 25 on-chip series dampening resistors
• Available in TSSOP and VFQFPN packages

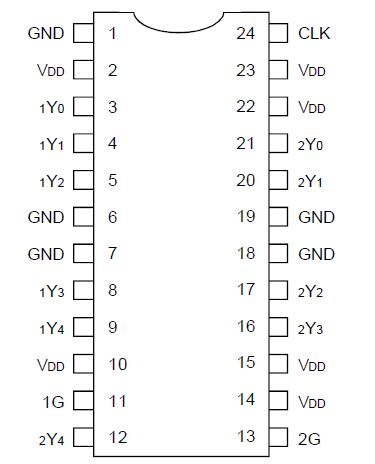

Pinout

Connection Diagram


Specifications

Symbol Description
Max
Unit
VDD Power Supply Voltage
0.5 to +4.6
V
VI Input Voltage(2)
0.5 to VDD +0.5
V
VO Output Voltage(2)
0.5 to VDD +0.5
V
IIK VI < 0 or VI > VDD Input Clamp Current
±50
mA
IOK(VO < 0 or VO > VDD) Output Clamp Current
±50
mA
IO(VO < 0 to VDD) Continuous Output Current
±50
mA
TSTG Storage Temperature
65 to +165
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Not to exceed 4.6V.






Description

The IDT5V2310 is a high performance, low skew clock buffer that operates up to 200MHz. Two banks of five outputs each provide low skew copies of CLK. Through the use of control pins 1G and 2G, the outputs of banks 1Y(0:4) and 2Y(0:4) can be placed in a low state regardless of CLK input. The device operates in 2.5V and 3.3V environments. The built-in output enable glitch suppression ensures a synchronized output enable sequence to distribute full period clock signals.
The IDT5V2310 is characterized for operation from -40°C to +85°C.
