IDT5T9070

Features: • Optimized for 2.5V LVTTL• Guaranteed Low Skew < 25ps (max)• Very low duty cycle distortion < 300ps (max)• High speed propagation delay < 2ns. (max)• Up to 200MHz operation• Very low CMOS power levels• Hot insertable and over-voltage to...

product image

IDT5T9070 Picture
See larger image
SeekIC No. : 004371877 Detail

IDT5T9070: Features: • Optimized for 2.5V LVTTL• Guaranteed Low Skew < 25ps (max)• Very low duty cycle distortion < 300ps (max)• High speed propagation delay < 2ns. (max)•...

IDT5T9070 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT5T9070
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Optimized for 2.5V LVTTL
• Guaranteed Low Skew < 25ps (max)
• Very low duty cycle distortion < 300ps (max)
• High speed propagation delay < 2ns. (max)
• Up to 200MHz operation
• Very low CMOS power levels
• Hot insertable and over-voltage tolerant inputs
• 1:10 fanout buffer
• 2.5V VDD
• Available in TSSOP package


Application

• Clock and signal distribution

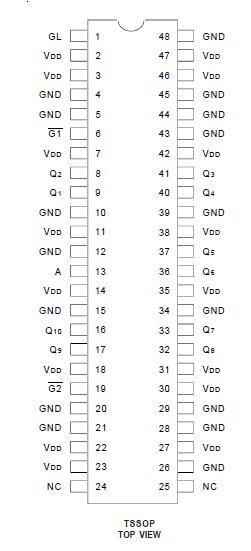

Pinout

Connection Diagram


Specifications

Symbol Description
Max
Unit
VDD Power Supply Voltage(2)
0.5 to +3.6
V
VI Input Voltage
0.5 to +3.6
V
VO Output Voltage(3)
0.5 to VDD +0.5
V
TSTG Storage Temperature
65 to +165
°C
TJ Junction Temperature
150
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The IDT5T9070 2.5V single data rate (SDR) clock buffer is a single-ended input to ten single-ended outputs buffer built on advanced metal CMOS technology. The SDR clock buffer fanout from a single input to ten single-ended outputs reduces the loading on the preceding driver and provides an efficient clock distribution network.

The IDT5T9070 has two output banks that can be asynchronously enabled/ disabled. Multiple power and grounds reduce noise.
