IDT54FCT841

Features:

FEATURES:
• Equivalent to AMD's Am29841-46 bipolar registers in pinout/function, speed and output drive over full temperature and voltage supply extremes
• IDT54/74FCT841A equivalent to FAST speed
• IDT54/74FCT841B 25% faster than FAST
• IDT54/74FCT841C 40% faster than FAST
• Buffered common latch enable, clear and preset inputs
•IOL = 48mA (commercial) and 32mA (military)
• Clamp diodes on all inputs for ringing suppression
• CMOS power levels (1mW typ. static)
• TTL input and output level compatible
• CMOS output level compatible
• Substantially lower input current levels than AMD'sbipolar Am29800 series (5µA max.)
• Product available in Radiation Tolerant and Radiation Enhanced versions
• Military product compliant to MIL-STD-883, Class B

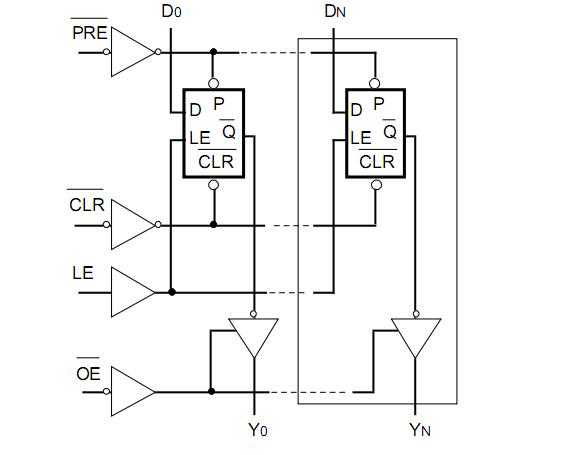

Pinout




Specifications




Description

The IDT54FCT841 series is built using an advanced dual metal CMOS technology.
The IDT54FCT841 series bus interface latches are designed to eliminate the extra packages required to buffer existing latches and provide extra data width for wider      address/data paths or buses carrying parity. The IDT54/74FCT841 is a buffered, 10-bit wide version of the popular '373 function.
All of the IDT54FCT841 high-performance interface amily are designed for high-capacitance load drive capability, while providing low-capacitance bus loading at both inputs and outputs. All inputs have clamp diodes and all outputs are designed for low-capacitance bus loading in the high-impedance state.
