IDT54FCT827AT

Features: •Common features:Low input and output leakage 1µA (max.)CMOS power levelsTrue TTL input and output compatibility VOH= 3.3V (typ.) VOL= 0.3V (typ.)Meets or exceeds JEDEC standard 18 specificationsProduct available in Radiation Tolerant and Radiation Enhanced versionsMilitary p...

product image

IDT54FCT827AT Picture
See larger image
SeekIC No. : 004371823 Detail

IDT54FCT827AT: Features: •Common features:Low input and output leakage 1µA (max.)CMOS power levelsTrue TTL input and output compatibility VOH= 3.3V (typ.) VOL= 0.3V (typ.)Meets or exceeds JEDEC standar...

IDT54FCT827AT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT54FCT827AT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Common features:
Low input and output leakage 1µA (max.)
CMOS power levels
True TTL input and output compatibility
VOH = 3.3V (typ.)
VOL = 0.3V (typ.)
Meets or exceeds JEDEC standard 18 specifications
Product available in Radiation Tolerant and Radiation Enhanced versions
Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
Available in DIP, SOIC, SSOP, QSOP, CERPACKand LCC packages

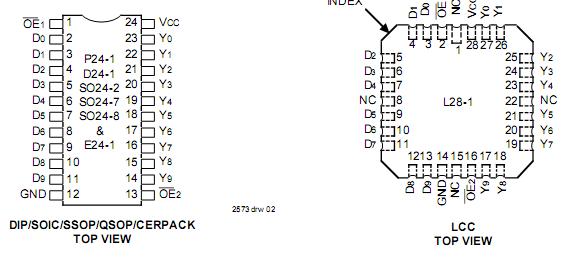

Pinout

Connection Diagram


Specifications

Symbol Rating Commercial Military Unit
VTERM(2) Terminal Voltage with Respect to GND 0.5 to +7.0 0.5 to +7.0 V
VTERM(3) Terminal Voltage with Respect to GND 0.5 to VCC+0.5 0.5 to VCC+0.5 V
TA Operating Temperature 0 to +70 55 to +125 °C
TBIAS Temperature Under Bias 55 to +125 65 to +135 °C
TSTG Storage Temperature 55 to +125 65 to +150 °C
PT Power Dissipation 0.5 0.5 W
IOUT DC Output Current 60 to +120 60 to +120 mA



Description

The IDT54FCT827AT is built using an advanced dual metal CMOS technology.

The IDT54FCT827AT 10-bit bus drivers provide high-performance bus interface buffering for wide data/address paths or buses carrying parity. The 10-bit  buffers have NAND-ed output enables for maximum control flexibility.

 All of the IDT54FCT827AT high-performance interface family are designed for high-capacitance load drive capability, while providing low-capacitance bus loading at both inputs and outputs. All inputs have clamp diodes to ground and all outputs are designed for low-capacitance bus loading in high-imped- ance state.

The IDT54FCT827AT has balanced output drive with current limiting resistors.  This offers low ground bounce, minimal undershoot and controlled output fall times-reducing the need for external series terminating resistors.  IDT54FCT827AT parts are plug-in replacements for FCT827T parts.
