IDT54FCT621T

Features: • Std. and A speed grades• Low input and output leakage 1A (max.)• CMOS power levels• True TTL input and output compatibility VOH = 3.3V (typ.) VOL = 0.3V (typ.)• Power off disable outputs permit live insertion • Meets or exceeds JEDEC standard 18 s...

product image

IDT54FCT621T Picture
See larger image
SeekIC No. : 004371810 Detail

IDT54FCT621T: Features: • Std. and A speed grades• Low input and output leakage 1A (max.)• CMOS power levels• True TTL input and output compatibility VOH = 3.3V (typ.) VOL = 0.3V (typ.)&...

IDT54FCT621T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT54FCT621T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Std. and A speed grades
• Low input and output leakage 1A (max.)
• CMOS power levels
• True TTL input and output compatibility
   VOH = 3.3V (typ.)
   VOL = 0.3V (typ.)
• Power off disable outputs permit "live insertion"
• Meets or exceeds JEDEC standard 18 specifications
• Product available in Radiation Tolerant and Radiation Enhanced versions
• Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
• Available in DIP, SOIC, CERPACK and LCC packages

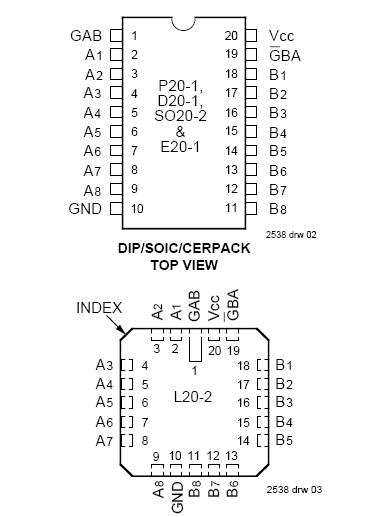

Pinout

Connection Diagram


Specifications

Symbol Rating
Commercial
Military
Unit
VTERM Terminal Voltage
with Respect to
GND
0.5 to +7.0
0.5 to +7.0
V
VTERM Terminal Voltage
with Respect to
GND
-0.5 to VCC +0.5
0.5 to VCC +0.5
V
TA Operating
Temperature
0 to +70
55 to +125
°C
TBIAS Temperature
Under Bias
55 to +125
65 to +135
°C
TSTG
Storage
Temperature
55 to +125
65 to +150
°C
PT Power Dissipation
0.5
0.5
W
IOUT
DC Output
Current
60 to +120
60 to +120
mA



Description

The IDT54FCT621T is an octal transceiver with non-inverting Open-Drain bus compatible outputs in both send and receive directions. The B bus outputs are capable of sinking 64mA providing very good capacitive drive characteristics. These octal bus transceivers are designed for asynchronous two-way communication between data buses.The control function implementation of the IDT54FCT621T allows for maximum flexibility in timing.
