IDT54FCT2646

Features: Low input and output leakage 1A (max.) Extended commercial range of 40°C to +85°C CMOS power levels True TTL input and output compatibility VOH = 3.3V (typ.) VOL = 0.3V (typ.) Meets or exceeds JEDEC standard 18 specifications Product available in Radiation Tolerant and Radiation Enhance...

product image

IDT54FCT2646 Picture
SeekIC No. : 004371779 Detail

IDT54FCT2646: Features: Low input and output leakage 1A (max.) Extended commercial range of 40°C to +85°C CMOS power levels True TTL input and output compatibility VOH = 3.3V (typ.) VOL = 0.3V (typ.) Meets or ex...

floor Price/Ceiling Price

Part Number:
IDT54FCT2646
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low input and output leakage 1A (max.)
Extended commercial range of 40°C to +85°C
CMOS power levels
True TTL input and output compatibility
VOH = 3.3V (typ.)
VOL = 0.3V (typ.)
Meets or exceeds JEDEC standard 18 specifications
Product available in Radiation Tolerant and Radiation
    Enhanced versions
Military product compliant to MIL-STD-883, Class B
    and DESC listed (dual marked)
Available in DIP, SOIC, SSOP, QSOP, TSSOP,
    CERPACK and LCC packages



Pinout

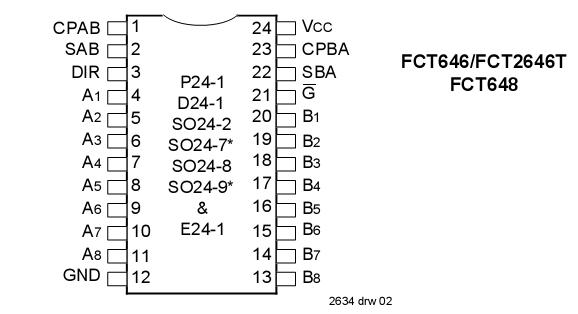

  Connection Diagram


Specifications

Symbol Description Max. Unit
(2)
VTERM(2)
Terminal Voltage with Respect to
GND
0.5 to +7.0 V
VTERM(3) Terminal Voltage with Respect to
GND
0.5 to
VCC +0.5
V
TSTG Storage Temperature 65 to +150 °C
IOUT DC Output Current 65 to +150 mA



Description

The IDT54FCT2646 con-sist of a bus transceiver with 3-state D-type flip-flops and control circuitry arranged for multiplexed transmission of data directly from the data bus or from the internal storage regis-ters.

The IDT54FCT2646 utilize GBA  and  signals to control the transceiver functions. The FCT646T/FCT2646T/ FCT648T utilize the enable control (G  ) and direction (DIR)pins to control the transceiver functions.SAB and SBA control pins are provided to select either real-time or stored data transfer. The circuitry used for select control will eliminate the typical decoding glitch that occurs in a multiplexer during the transition between stored and real-time data. A LOW input level selects real-time data and a HIGH selects stored data.Data on the A or B data bus, or both, can be stored in the internal D flip-flops by  LOW-to-HIGH transitions at the appro-priate clock pins (CPAB or CPBA), regardless of the select orenable control pins.

The IDT54FCT2646 have balanced drive outputs with current limiting resistors.  This offers low ground bounce, minimalundershoot and controlled output fall times-reducing the need for external series terminating resistors.  FCT2xxxT parts are plug-in replacements for FCTxxxT parts.
