IDT54FCT2257AT

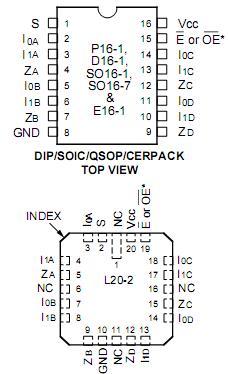

The IDT54FCT2257AT are high-speed quad 2-input multiplexers built using an advanced dual metal CMOS technology.  Four bits of data from two sources can be selected using the common select input.  The four buffered outputs present the selected data in the true (non-inverting) form.

The IDT54FCT2257AT has a common, active-LOW, enable input. When the enable input is not active, all four outputs are held LOW.  A common application of 'FCT157T is to move data from two different groups of registers to a common bus. Another application is as a function generator.  The 'FCT157T can generate any four of the 16 different functions of two variables with one variable common.

The IDT54FCT2257AT have a common Output Enable (OE</a>) input.  When OE</a> is HIGH, all outputs are switched to a high-impedance state allowing the outputs to interface directly with bus-oriented systems.

The IDT54FCT2257AT has balanced output drive with current limiting resistors.  This offers low ground bounce, minimal undershoot and controlled output fall times-reducing the need for external series terminating resistors.  IDT54FCT2257AT parts are plug-in replacements for FCTxxxT parts.
