IDT54FCT164245T

Features: • 0.5 MICRON CMOS Technology• Bidirectional interface between 3.3V and 5V busses• Control inputs can be driven from either 3.3V or 5V circuits• ESD >2000V per MIL-STD-883, Method 3015;>200V using machine model (C = 200pF, R = 0)• 25 MIL Center SSOP and...

product image

IDT54FCT164245T Picture
See larger image
SeekIC No. : 004371750 Detail

IDT54FCT164245T: Features: • 0.5 MICRON CMOS Technology• Bidirectional interface between 3.3V and 5V busses• Control inputs can be driven from either 3.3V or 5V circuits• ESD >2000V per MI...

IDT54FCT164245T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT54FCT164245T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 0.5 MICRON CMOS Technology
• Bidirectional interface between 3.3V and 5V busses
• Control inputs can be driven from either 3.3V or 5V circuits
• ESD >2000V per MIL-STD-883, Method 3015;>200V using machine model (C = 200pF, R = 0)
• 25 MIL Center SSOP and Cerpack Packages
• Extended commercial range of -40°C to +85°C
• VCC1 = 5V ±10%, VCC2 = 2.7V to 3.6V
• High drive outputs (-32mA IOH, 64mA IOL) on 5V port
• Power-off disable on both ports permits "live insertion"
• Typical VOLP (Output Ground Bounce) < 0.9V at VCC1 = 5V, VCC2 = 3.3V, TA = 25°C


Pinout

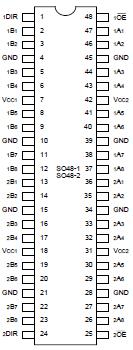

Connection Diagram


Specifications

Symbol Rating
Commercial
Military
Unit
VTERM(2) Terminal Voltage with Respect to GND
0.5 to +7.0
0.5 to +7.0
V
VTERM(3) Terminal Voltage with Respect to GND
0.5 to VCC1 +0.5
0.5 to VCC1 +0.5
V
TA Operating Temperature
40 to +85
55 to +125
TBIAS Temperature Under Bias
55 to +125
65 to +135
TSTG Storage Temperature
55 to +125
65 to +150
PT Power Dissipation
1.0
1.0
W
IOUT DC Output Current
60 to +120
60 to +120
mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. All device terminals except VCC2.
3. Power supply terminals VCC2.


Description

The IDT54FCT164245T 16-bit 3.3V-to-5V translator is built using advanced dual metal CMOS technology. This highspeed, low-power transceiver is designed to interface between a 3.3V bus and a 5V bus in a mixed 3.3V/5V supply environment. This enables system designers to interface TTL compatible 3.3V components with 5V components. The direction and output enable controls operate these devices as either two independent 8-bit transceivers or one 16-bit transceiver. The A port interfaces with the 3.3V bus; the B port interfaces with the 5V bus. The direction control (xDIR) pin controls the direction of data flow. The output enable (xOE) overrides the direction control and disables both ports. These control signals of the IDT54FCT164245T can be driven from either 3.3V or 5V devices.

The IDT54FCT164245T is ideally suited for driving high capacitance loads and low impedance backplanes. The output buffers are designed with Power-Off Disable capability to allow "hot insertion" of boards when used as backplane drivers. They also allow interface between a mixed supply system and external 5V peripherals.
