Features:

• Equivalent to AMD's Am29821-25 bipolar registers in pinout/function, speed and output drive over full temperature and voltage supply extremes
• IDT54/74FCT821A equivalent to FAST™ speed
• IDT54/74FCT821B 25% faster than FAST
• IOL = 48mA (commercial) and 32mA (military)
• Clamp diodes on all inputs for ringing suppression
• CMOS power levels (1mW typ. static)
• TTL input and output compatibility
• CMOS output level compatible
• Substantially lower input current levels than AMD's bipolar Am29800 series (5µA max.)
• Military product compliant to MIL-STD-883, Class B
• Available in the following packages:
Commercial: SOIC
Military: CERDIP, LCC



Pinout

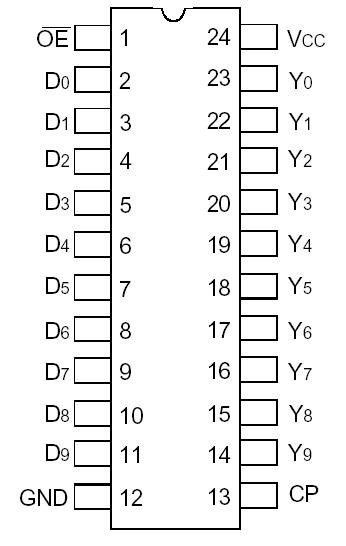

  Connection Diagram


Specifications

Symbol Rating Commercial Military Unit
VTERM(2) Terminal Voltage
with Respect to GND
0.5 to +7 0.5 to +7 V
VTERM(3) Terminal Voltage
with Respect to GND
0.5 to VCC 0.5 to VCC V
TA Operating Temperature 0 to +70 55 to +125 °C
TBIAS Temperature Under Bias 55 to +125 65 to +135 °C
TSTG Storage Temperature 55 to +125 65 to +150 °C
PT Power Dissipation 0.5 0.5 W
IOUT DC Output Current 120 120 mA



Description

The IDT5474FCT821A series is built using an advanced dual metal CMOS technology. The IDT5474FCT821A series bus interface registers are designed to eliminate the extra packages required to buffer existing registers and provide extra data width for wider address/data paths or buses carrying parity. The 74FCT821 is a buffered, 10-bit wide version of the popular FCT374 function.

The IDT5474FCT821A high-performance interface family is designed for highcapacitance load drive capability, while providing low-capacitance bus loading at both inputs and outputs. All inputs have clamp diodes and all outputs are designed for low-capacitance bus loading in high-impedance state.
