IDT5474FCT139T

Features: • Std., A, and C grades• Low input and output leakage 1µA (max.)• CMOS power levels• True TTL input and output compatibility: VOH = 3.3V (typ.) VOL = 0.3V (typ.)• High Drive outputs (-15mA IOH, 48mA IOL)• Meets or exceeds JEDEC standard 18 specif...

product image

IDT5474FCT139T Picture
See larger image
SeekIC No. : 004371712 Detail

IDT5474FCT139T: Features: • Std., A, and C grades• Low input and output leakage 1µA (max.)• CMOS power levels• True TTL input and output compatibility: VOH = 3.3V (typ.) VOL = 0.3V (ty...

IDT5474FCT139T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT5474FCT139T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Std., A, and C grades
• Low input and output leakage 1µA (max.)
• CMOS power levels
• True TTL input and output compatibility:
VOH = 3.3V (typ.)
VOL = 0.3V (typ.)
• High Drive outputs (-15mA IOH, 48mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
• Power off disable outputs permit "live insertion"
• Available in the following packages:
Industrial: SOIC, QSOP
Military: CERDIP, LCC


Pinout

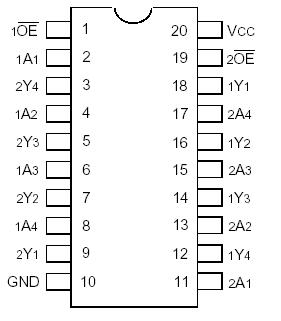

Connection Diagram


Specifications

Description
Symbol
Max
 unit
Terminal Voltage with Respect to GND
VTERM(2)
0.5 to +7
 V
Terminal Voltage with Respect to GND
VTERM(3)
0.5 to VCC+0.5
 V
Storage Temperature
TSTG
65 to +150
 ° C
DC Output Current
IOUT
65 to +120
 mA


NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC.




Description

The IDT5474FCT139T is a dual 1-of-4 decoder built using an advanced dual metal CMOS technology. These devices have two independent decoders, each of which accept two binary weighted inputs (A0-A1) and provide four mutually exclusive active low outputs (O0-O3). Each decoder of the IDT5474FCT139T has an active low enable (E). When E is high, all outputs are forced high.
